BMW Triple Tree Clamp | “Scram” | R nineT 55mm Forks

BMW Triple Tree Clamp with hidden fork mounting mechanism and holes to mount risers for bars. Fits BMW R nineT models with 55mm forks.

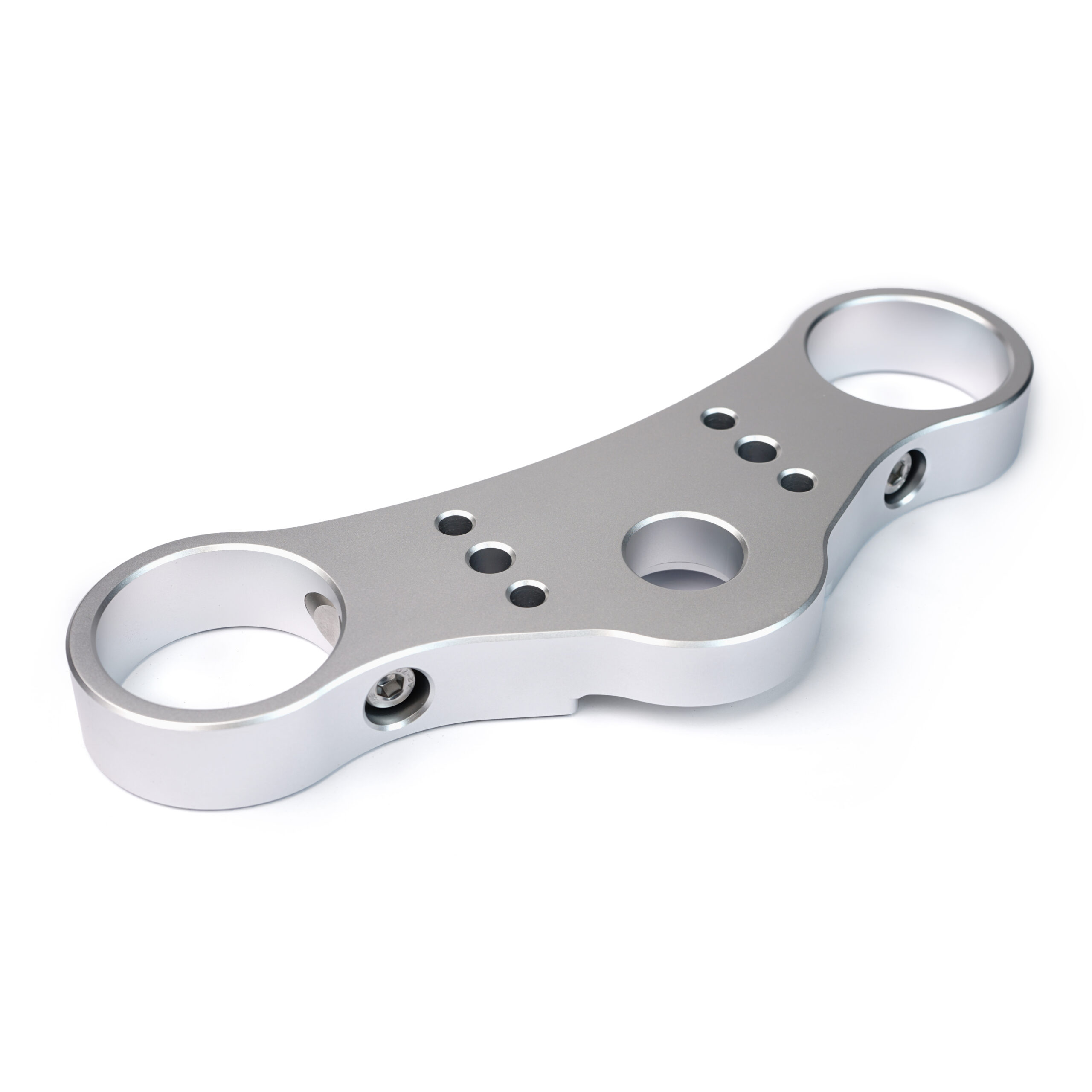

This high quality triple tree clamp is CNC machined out of a single piece of aircraft grade aluminium. After machining the triple tree clamp undergoes a series of surface treatment steps including anodizing. The result is a smooth satin finish that is both scratch and weather resistant. Perfect for a scrambler motorcycle build or any other custom build, where you wish to use bars.

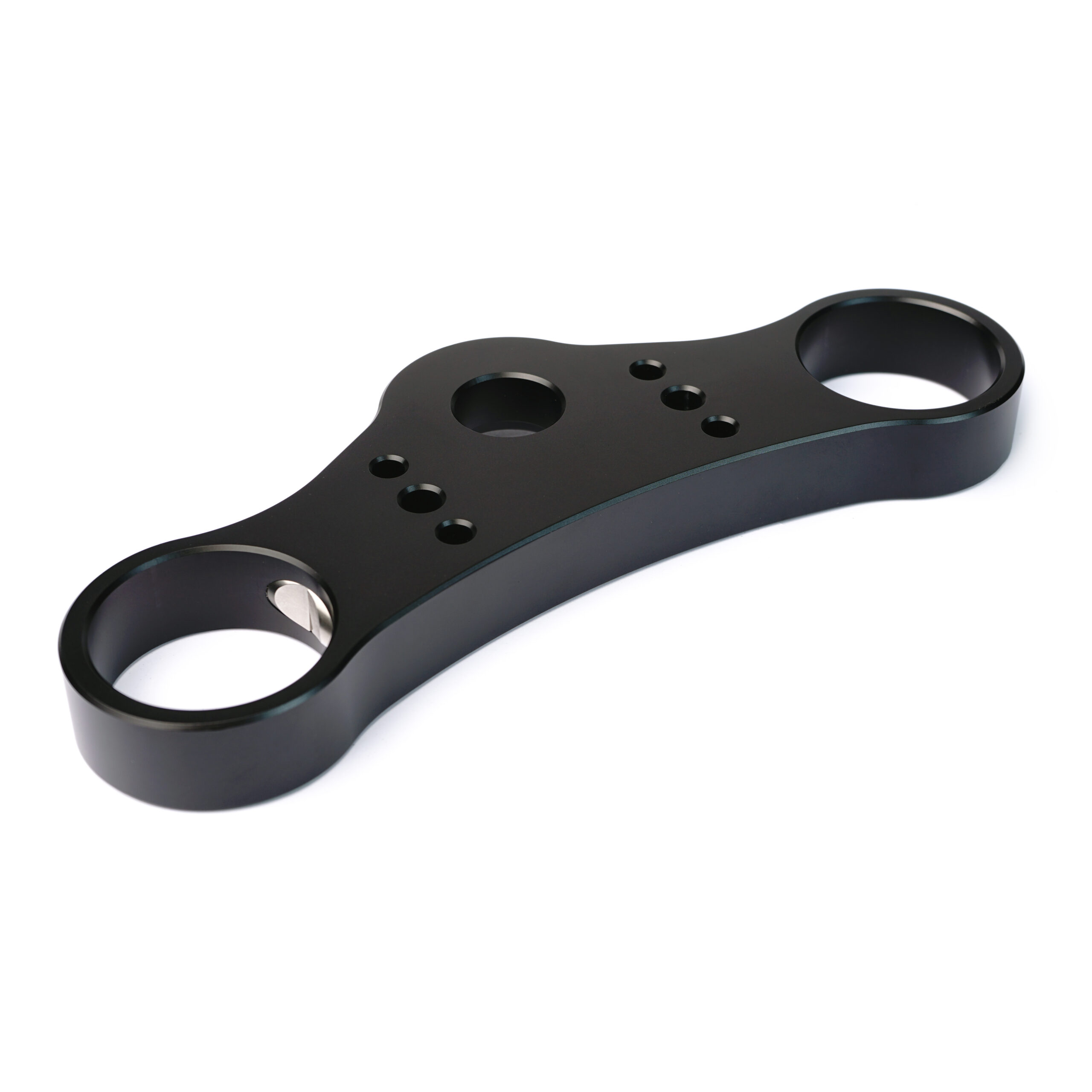

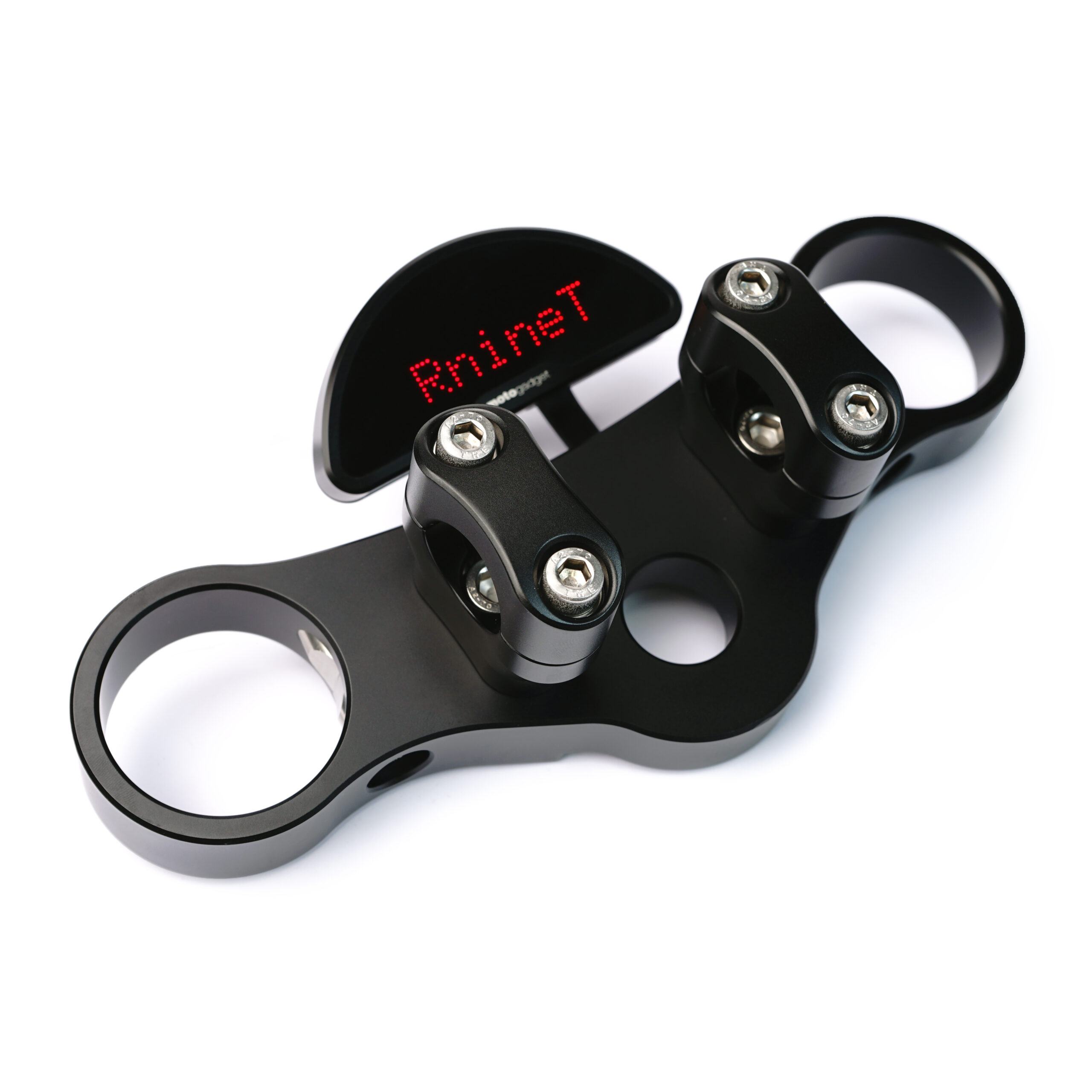

The “Scram” Triple Tree Clamp has four Ø8mm and two Ø10mm holes to be used with most aftermarket risers, including our own Rebelmoto risers, which of course are specially designed for our triple trees. The Rebelmoto risers are mounted by a single M10 bolt and the extra Ø8mm holes can be used to channel any wires from inside the bars out through the bottom of the Triple Tree Clamp.

The hidden fork locking mechanism that secures the triple tree clamp to the front forks are CNC machined out of stainless steel and are of course included together with two M8 stainless steel bolts.

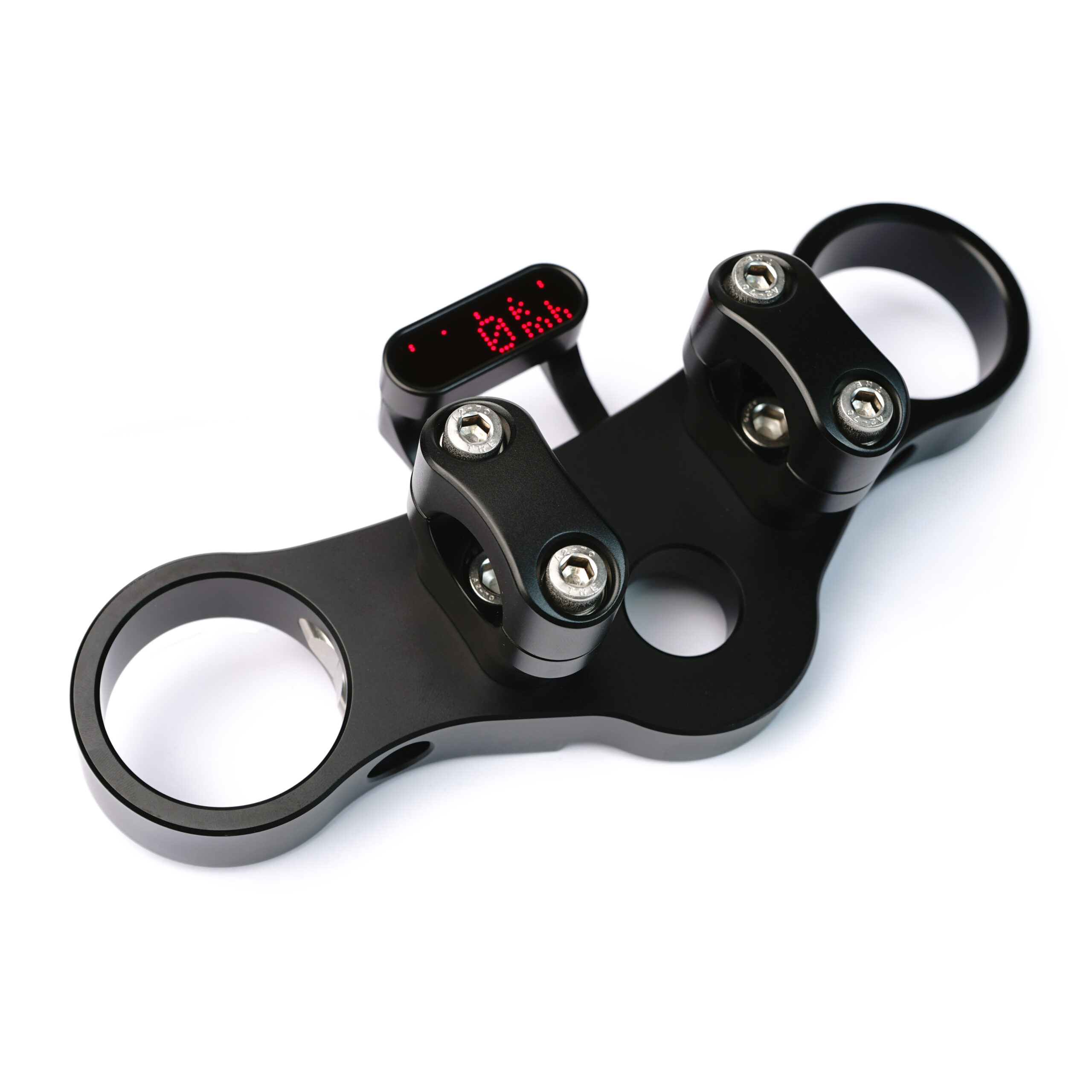

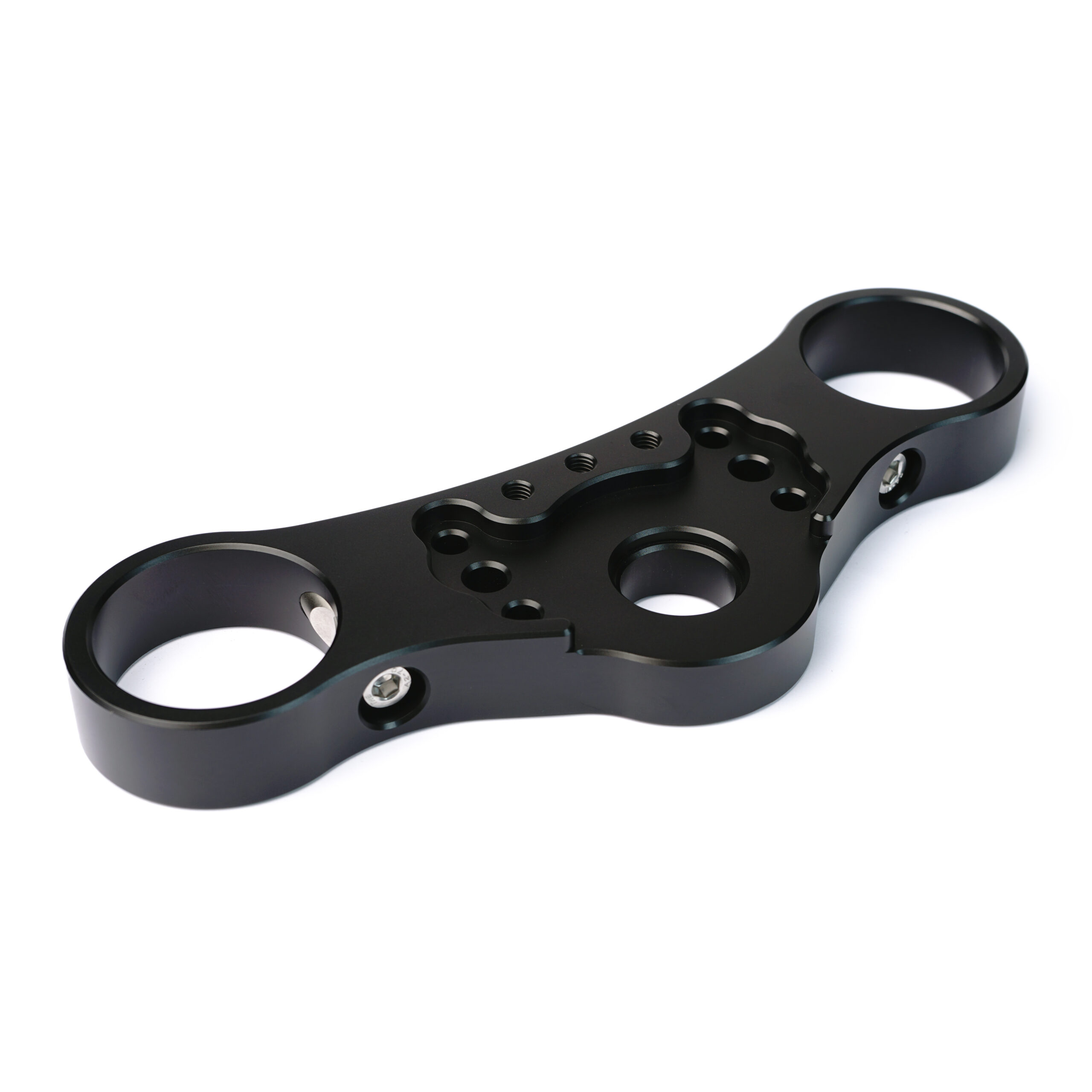

At the bottom of the triple tree clamp there are three M8 holes, which can be used to mount a speedometer or any other parts you wish to have installed. Ignition lock or a bracket for the choke, for example.

Fits the following BMW R nineT motorcycle with 55mm forks.

R nineT “Original” 2014-2016

If you are in doubt whether or not this is the right triple tree clamp for your bike, please contact us.
