rebel switch 3 button LED – Black
87,00 €
Motorcycle handlebar control switches with built-in LED indicators.
The rebel switch combines sleek and minimalistic design with great functionality. Perfect if you are building a café racer, scrambler or any other bike and want a cool clean look.
The order of the LED color selection below is not relevant. Just pick the colors you would like, and when you install the rebel switch you set it up in the way you want.
Motorcycle handlebar control switches with built-in LED indicators.
The rebel switch combines sleek and minimalistic design with great functionality. Perfect if you are building a café racer, scrambler or any other bike and want a cool clean look. Choose between black anodized or polished finish and combine it with push buttons of the same color and finish. Alternatively you can mix it up by choosing e.g. the polished housing and black push buttons.

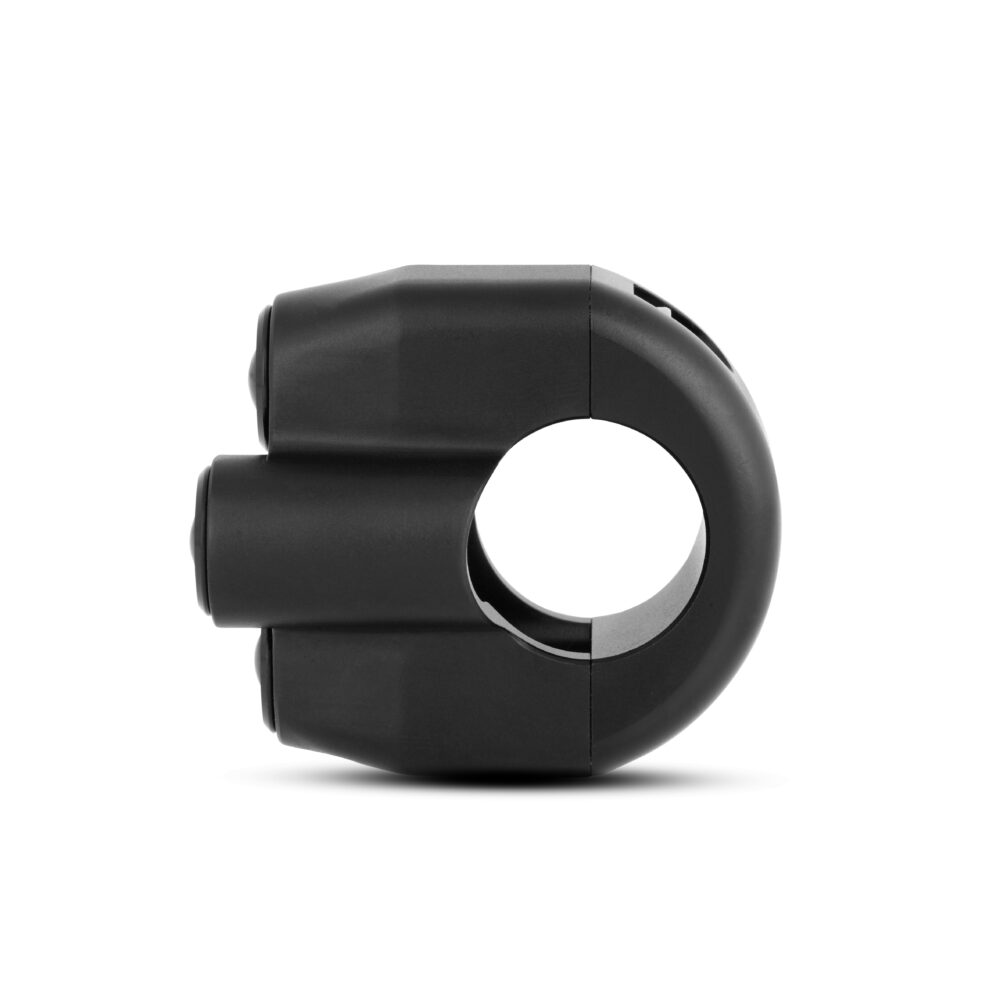

The housing is CNC machined out of aircraft grade aluminum and is available for 22mm (7/8”) and 25.4mm (1”) handlebar diameters.

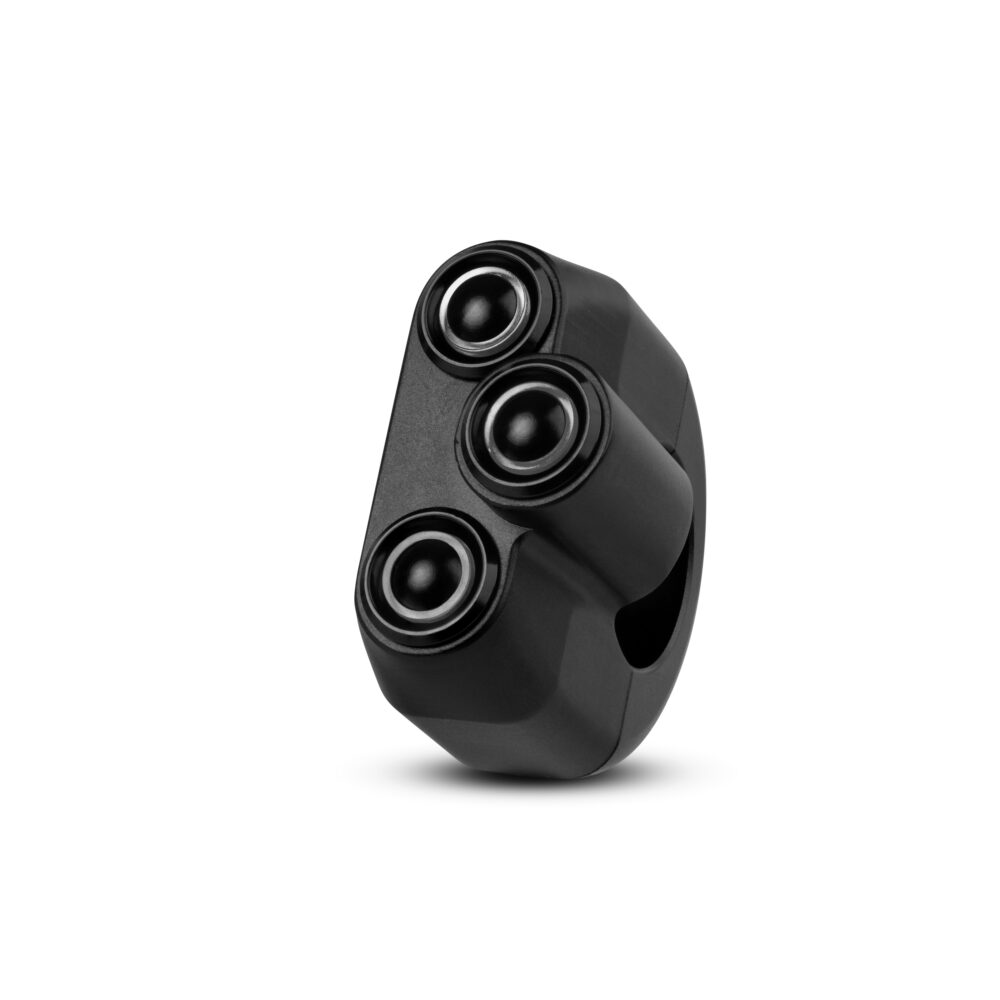

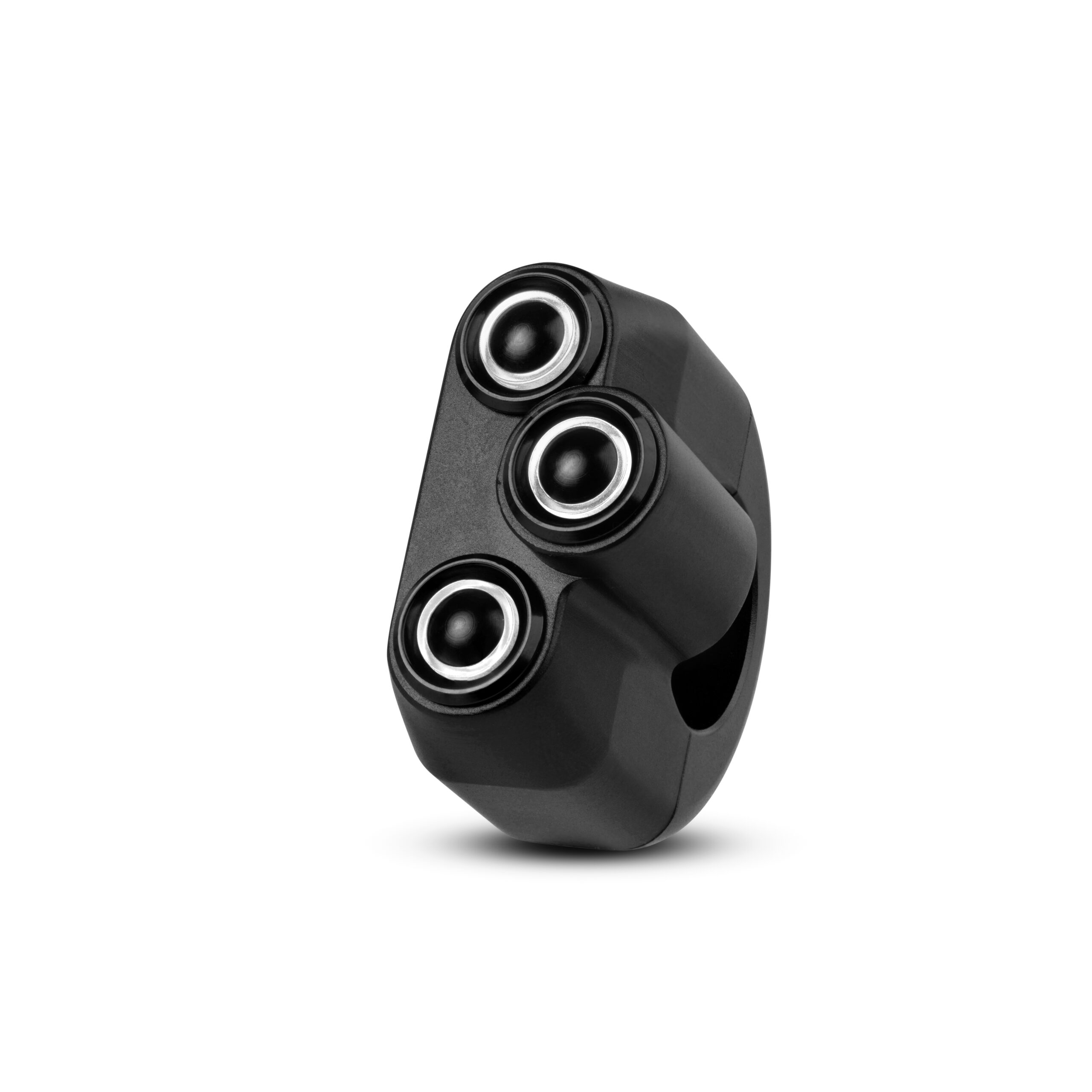

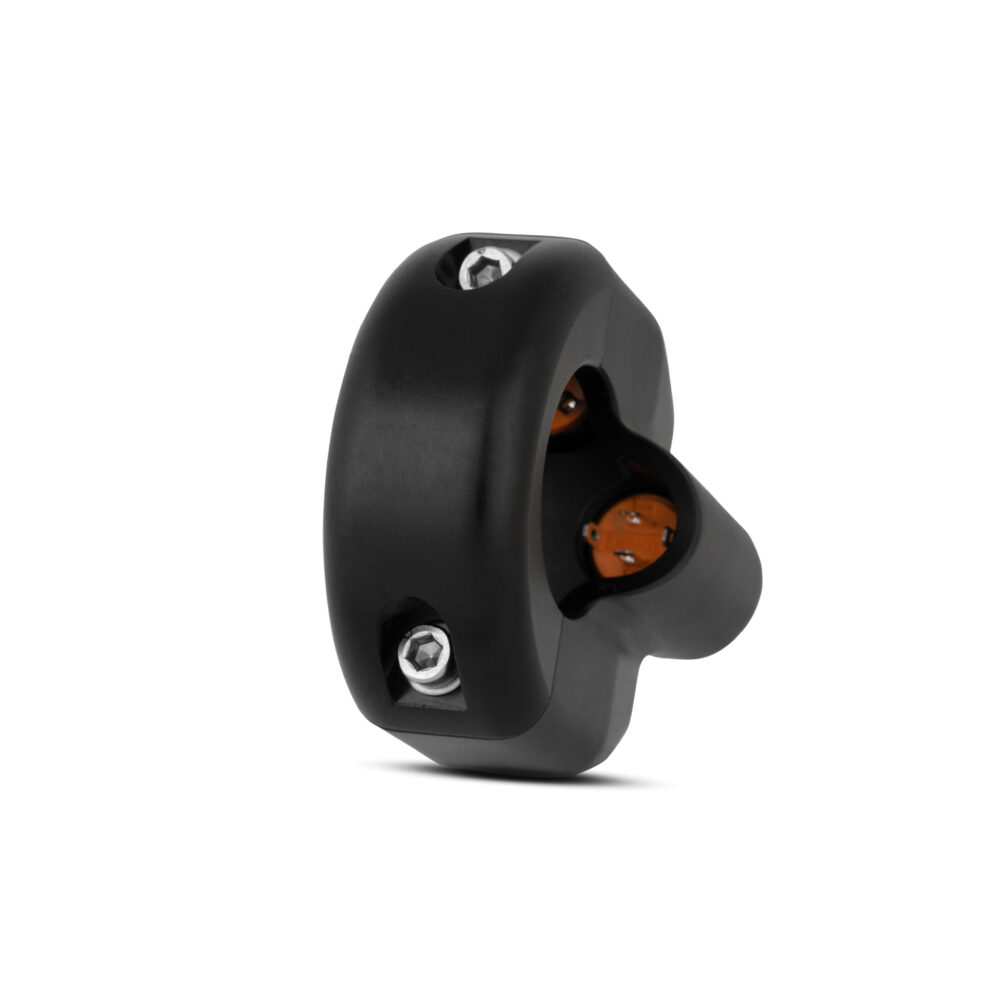

Each housing has three momentary push buttons designed to be used together with a control box, like the m-Unit from Motogadget and can be used to control turn signals, lights, starter, horn and anything else you can think of. The push buttons are rated at 1A and are IP65, which means they can withstand rain and dust. The rebel switch is mounted to the handlebars using two 3mm stainless bolts, which of course are included.

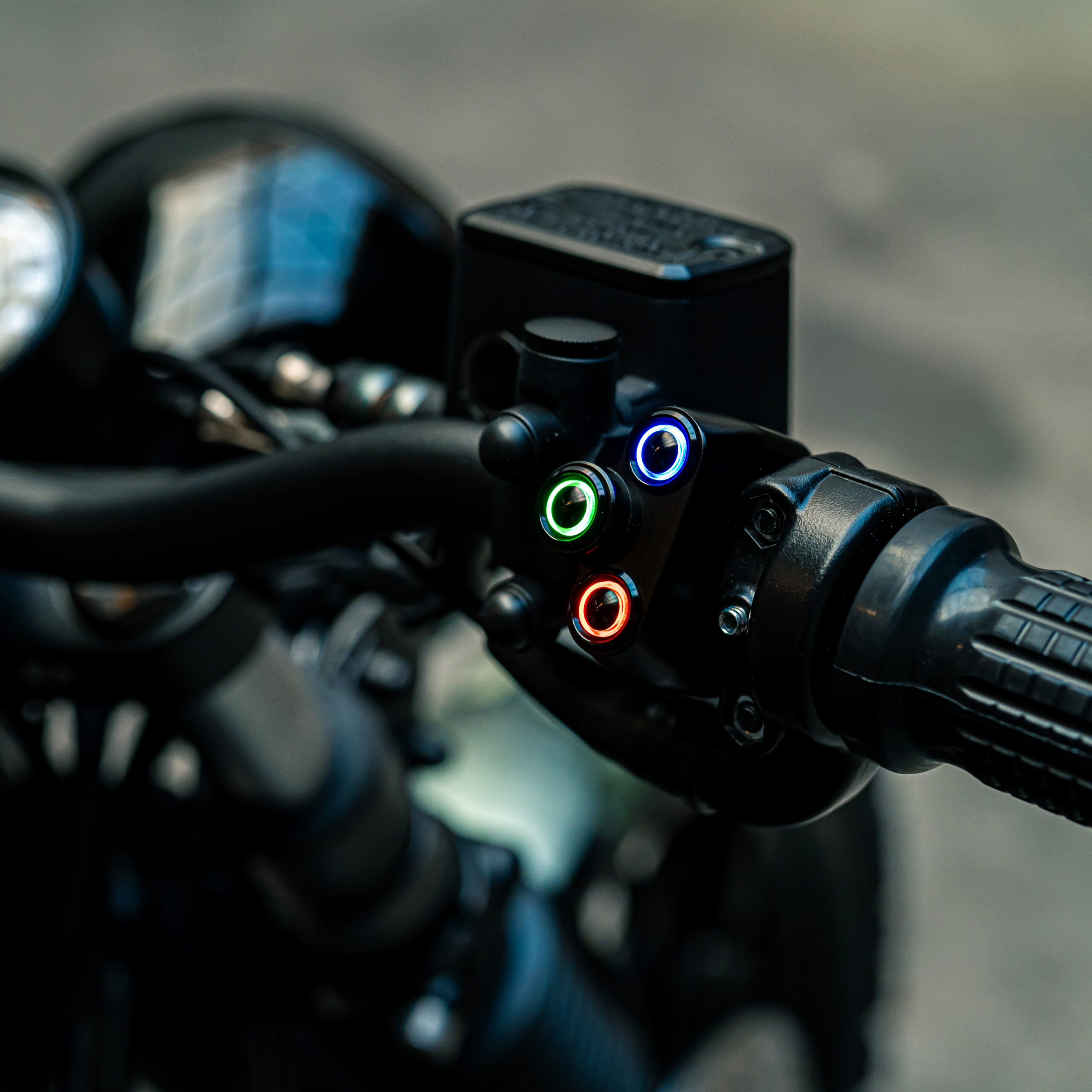

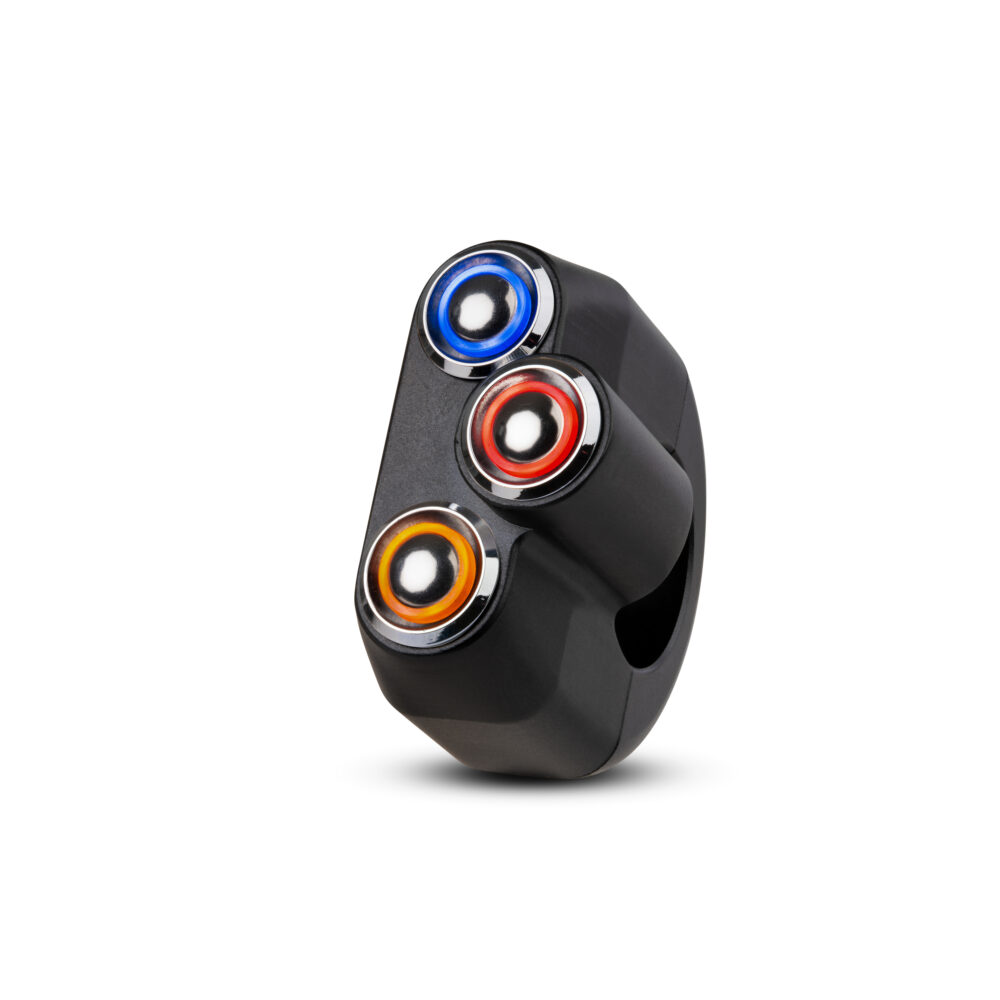

You can choose between yellow, green, blue and red LED indicators. How you set it up is entirely up to you, but for inspiration you can see an example of a 5 button setup below:
Left side of handlebar (rebel switch 3 Button LED)
Top – Lights. Blue LED (high beam)
Middle – Horn. Green LED (neutral)
Bottom – Left turn signal. Yellow LED (flashes when active)
Right side of handlebar (rebel switch 2 Button LED)
Top – Engine start / kill engine. Red LED (oil pressure)
Bottom – Right turn signal. Yellow LED (flashes when active)
Price is for one unit
The setup and position of the LED push buttons in the switch housing can be fully customized during installation. The order of the LED color selection above is therefore not relevant. Just pick the colors you would like, and when you install the rebel switch you set it up in the way you want.
Technical specs.
Protection Level: IP65
Max. Current: 1A
LED Color: yellow, green, blue, red
LED voltage 9-24V
Dimensions L x W x H (cm): 4.6 x 2.7 x 4.6
Handlebar diameter: 22mm (7/8”) or 25.4mm (1”)
| Weight | N/A |
|---|
