Rebel Risers | Motoscope Pro | 22mm

Rebelmoto Risers bracket for 22mm (7/8″) bars and with integrated bracket for the Motoscope Pro speedometer. All wires from your handlebar controls and bar end turn signals, can be hidden within the bars and routed through the risers. Including the the cable from the Motoscope Pro speedometer. For that clean look with minimum cable clutter.

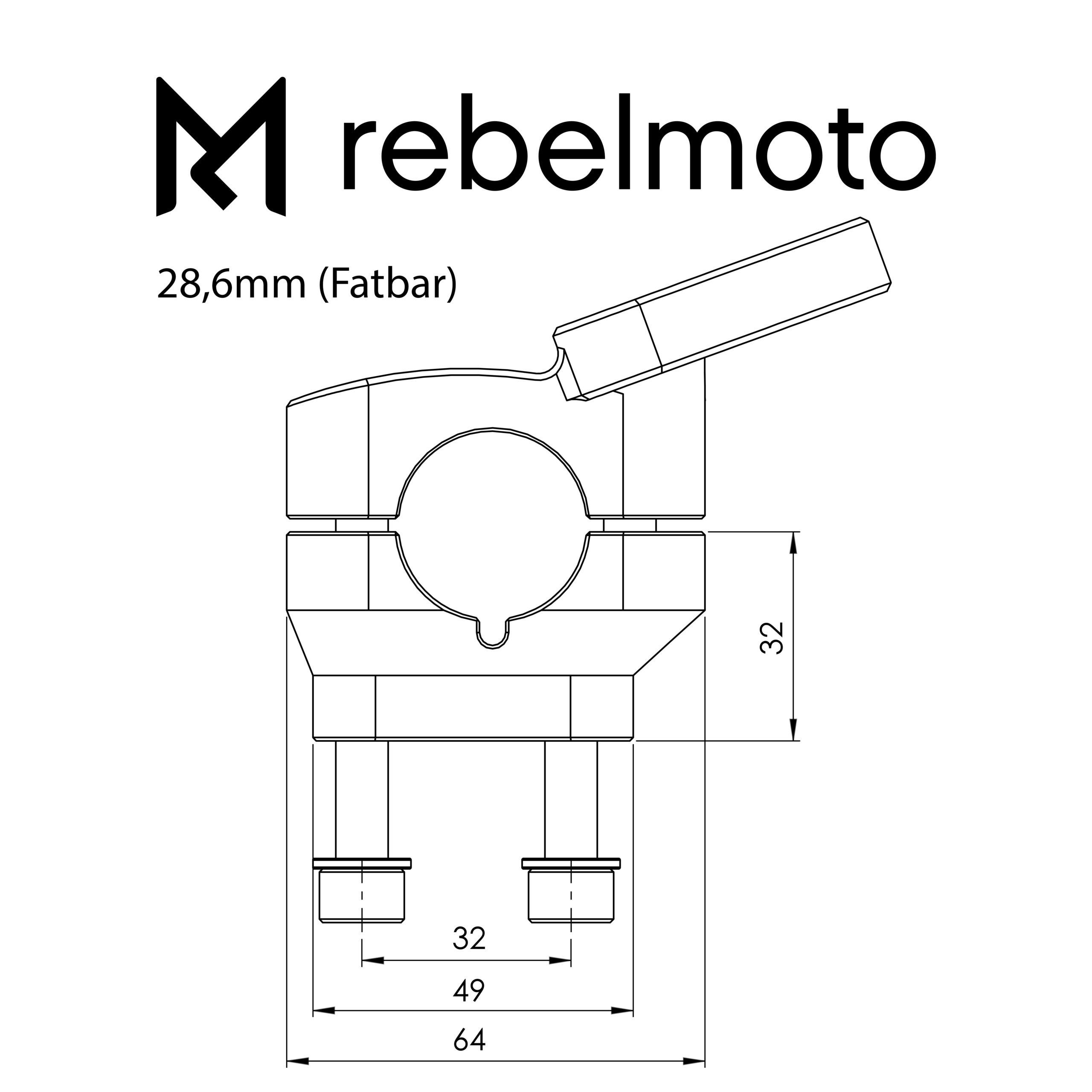

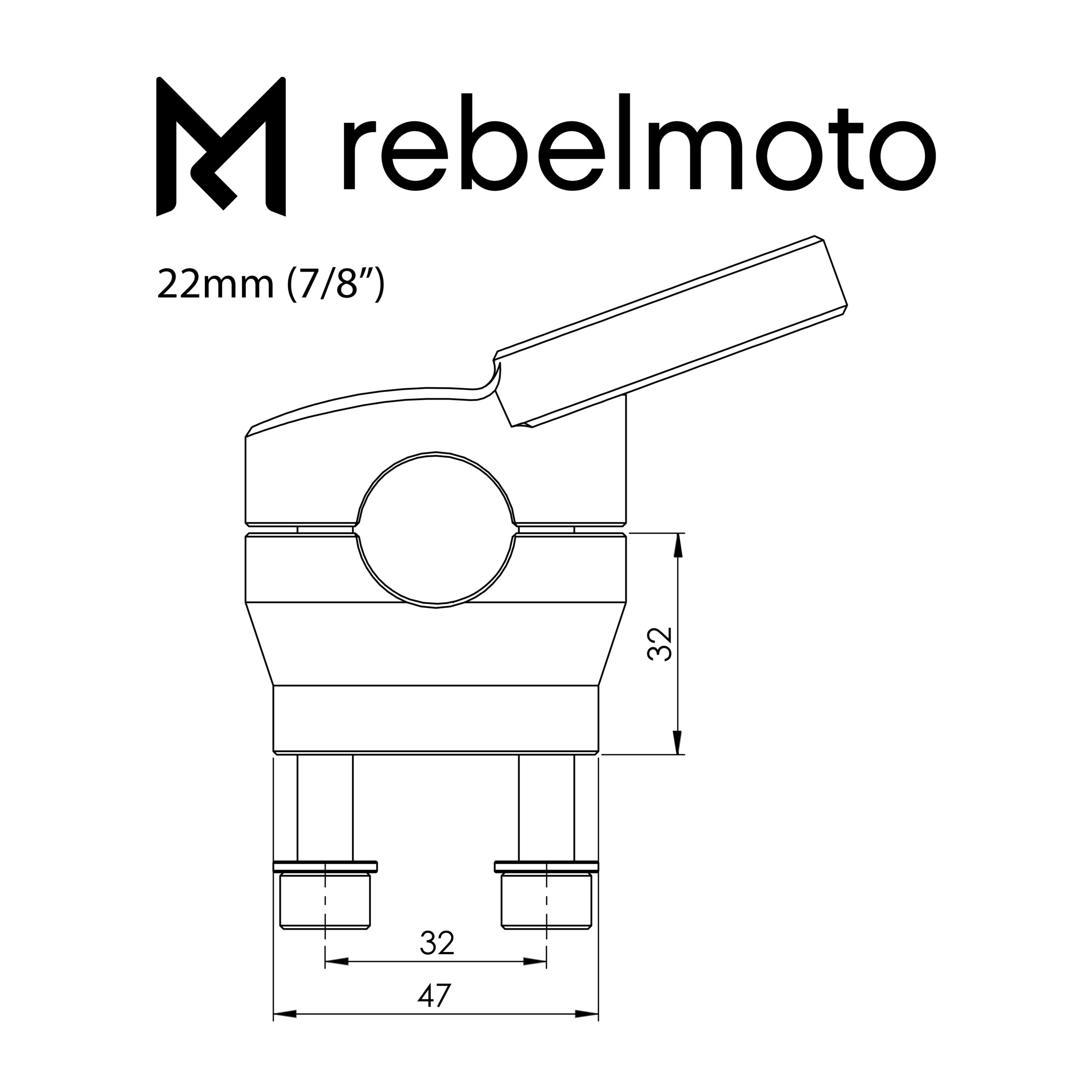

The height is 32mm with no offset. Measured from top of the triple tree clamp to the center of the bar. See drawing for further measurements. The risers bracket has pre drilled holes making it possible to route the wiring through it. You therefore don’t have to drill any visible holes in the bar, but can have all the wires routed out at the bottom of the triple tree clamp.

The risers bracket has been CNC machined out of three pieces of aluminium. After machining the parts undergo a series of surface treatment steps, including anodizing. The result is a smooth satin finish, that is both scratch and weather resistant. Available in both black and silver anodized.

The risers are mounted to the triple tree using four M8 stainless steel bolts, which are included. They can be used with our own Rebelmoto Triple Tree Clamps, and any other triple tree with 8mm mounting holes. The risers can also be used with the BMW 4mm OEM steel yoke. This requires shorter M8 bolts, than the ones included.

All stainless steel hardware is included in the box.

Speedometer not included

Can be used with all our Rebelmoto “Scram” Triple Tree Clamps:

Triple Tree Clamp “Scram”
