BMW Triple Tree Clamp | Motogadget Motoscope Tiny | K100 & K75 – 41,3mm Forks

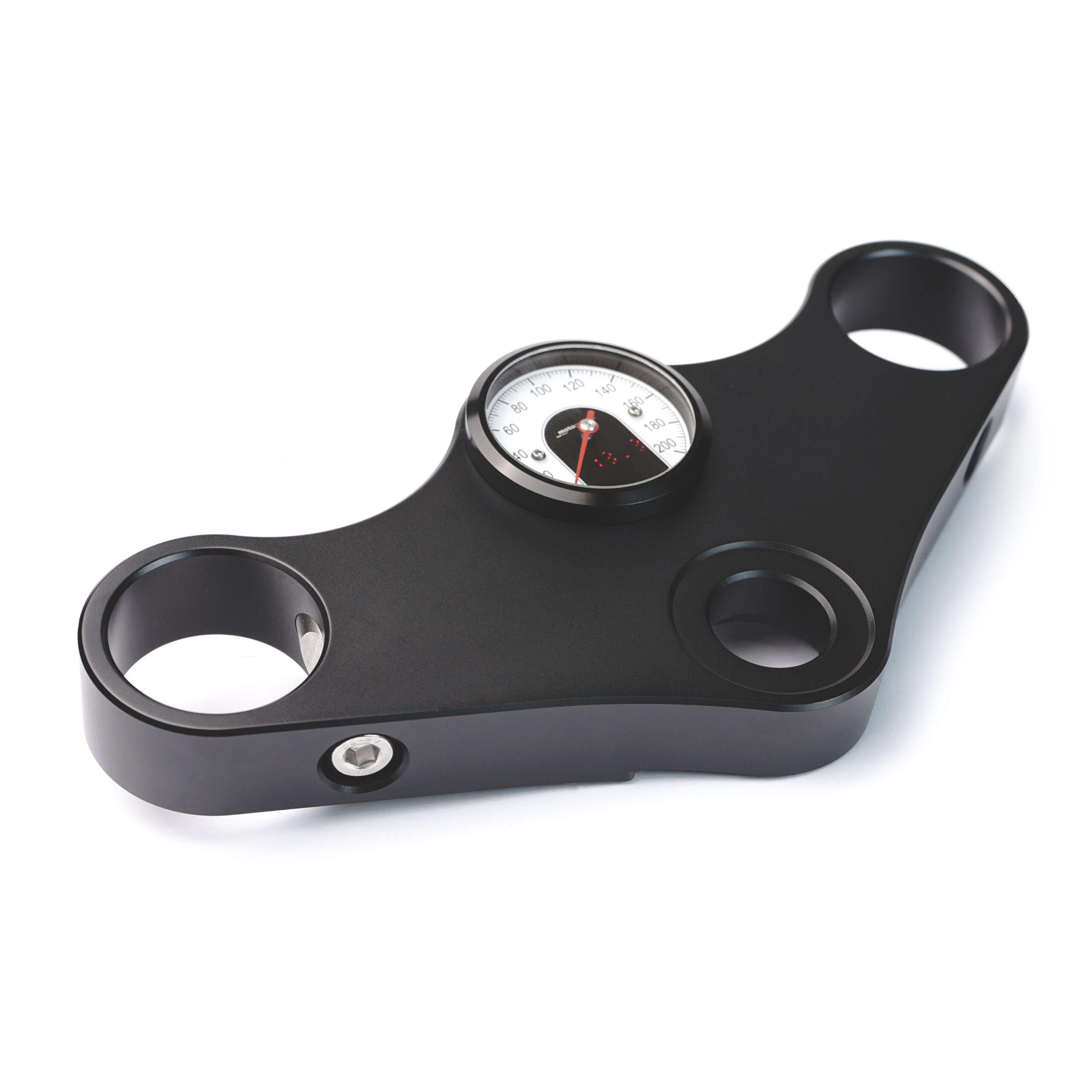

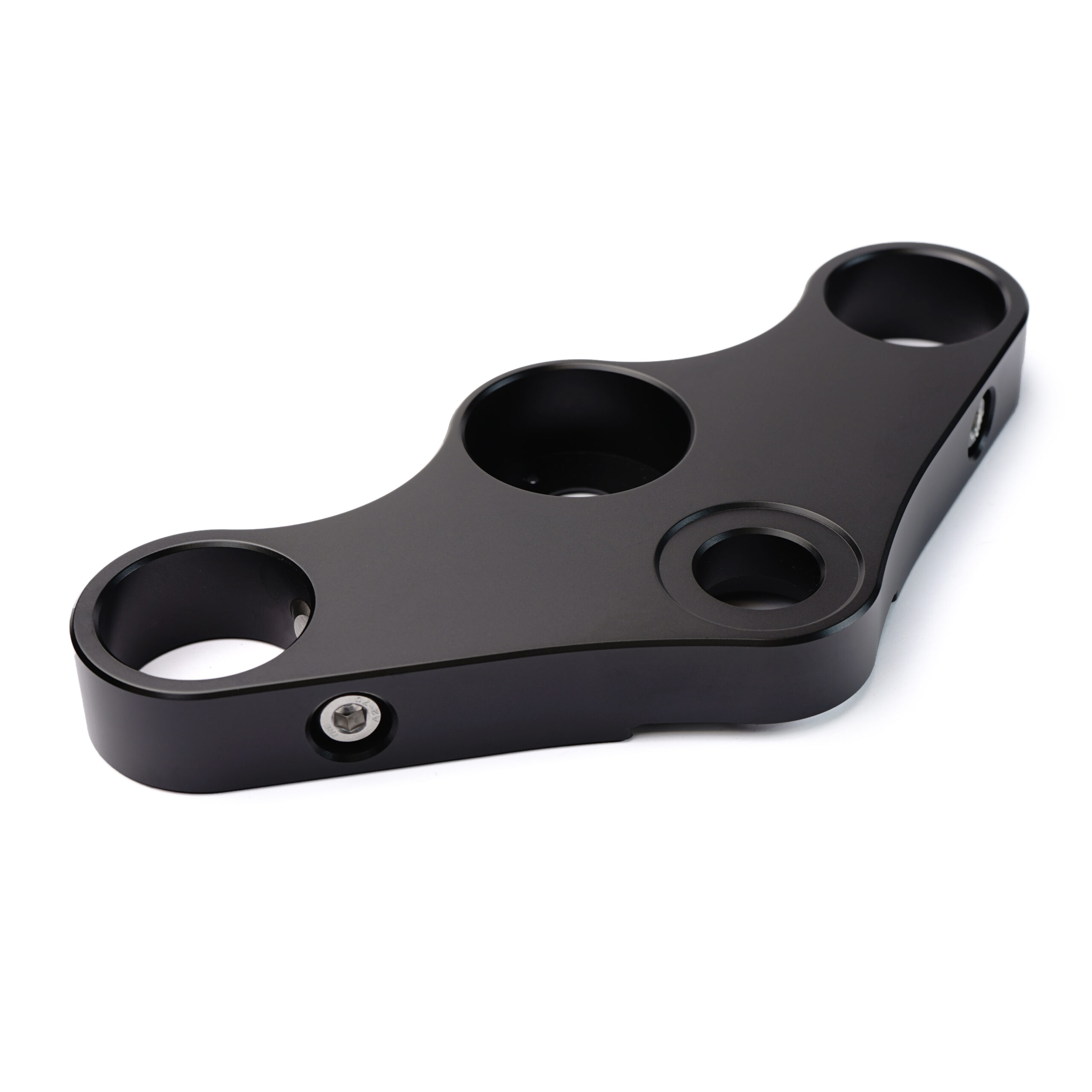

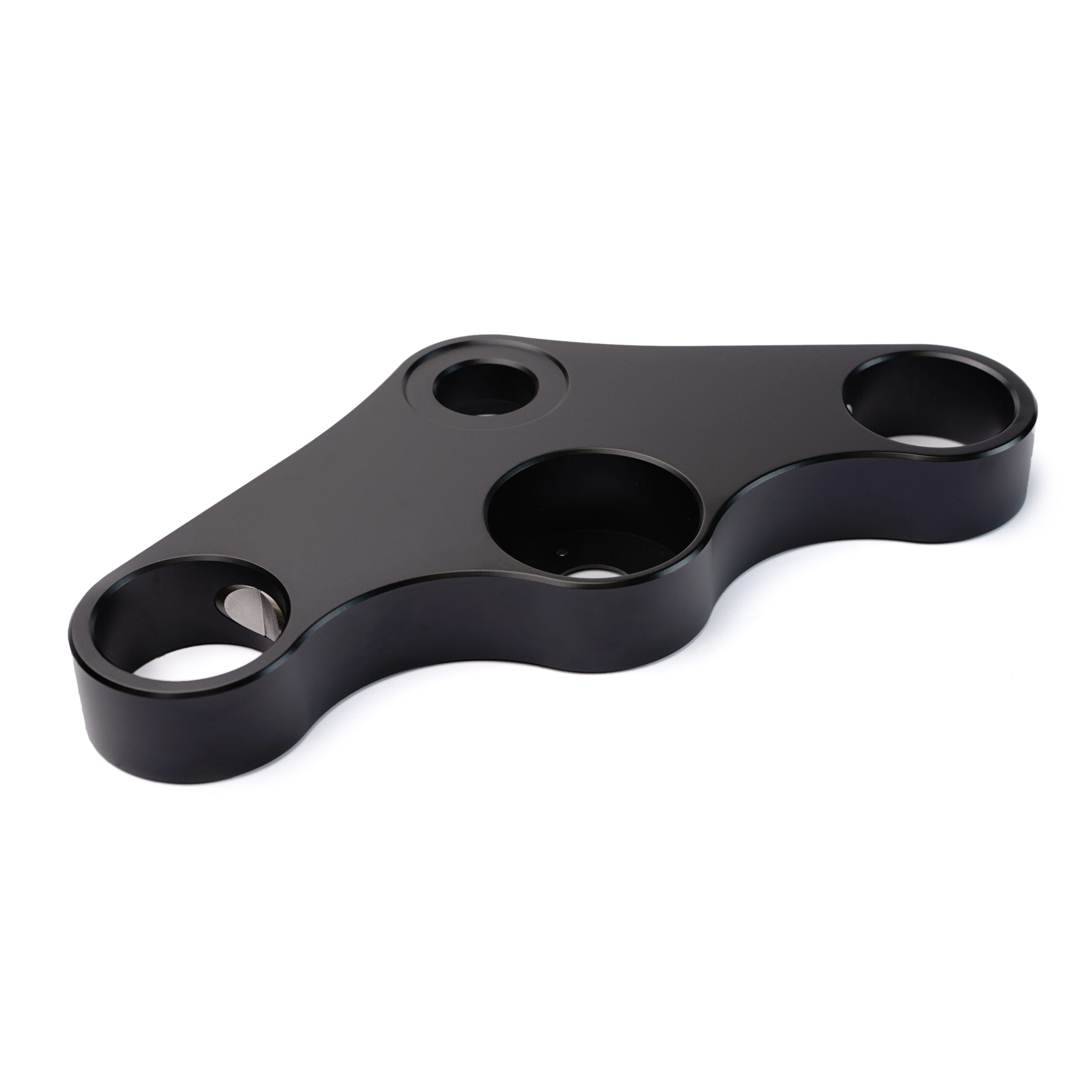

BMW Triple Tree Clamp with integrated Motogadget speedo and hidden fork mounting mechanism. Fits BMW K100 & K75 models with 41,3mm forks.

This high quality triple tree clamp is CNC machined out of a single piece of aircraft grade aluminium. After machining the triple tree clamp undergoes a series of surface treatment steps including anodizing. The result is a smooth satin finish that is both scratch and weather resistant. Perfect for a café racer motorcycle build or any other custom build, where you wish to use clip-ons.

The triple tree clamp has been designed to be used together with Motogadget´s series of Ø49mm speedometers. This includes the “Motoscope Tiny”, the “Mst Speedster” and the “Mst Vintage”.

The hidden fork locking mechanism that secures the triple tree clamp to the front forks are CNC machined out of stainless steel and are of course included together with two M8 stainless steel bolts.

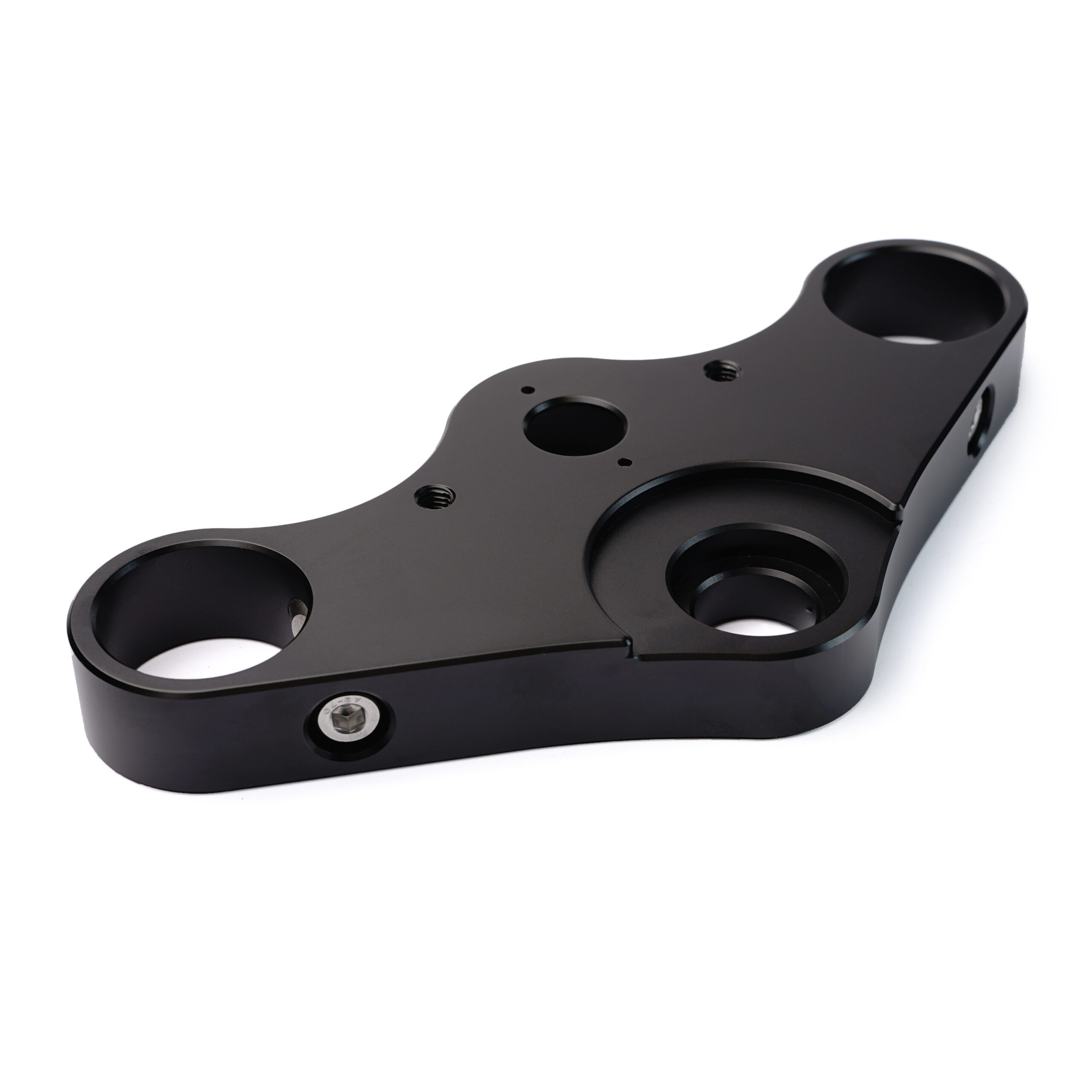

At the bottom of the triple tree clamp there are two M8 holes, which can be used to mount a speedometer or any other parts you wish to have installed. Ignition lock or a bracket for the choke, for example.

Fits the following BMW K models with 41,3mm forks:

K100 (1983-86)

K100RS (1983-88)

K100RT (1985-88)

K100LT (1987-92)

K75C (1986-88)

K75S (1987-91)

K75 (1988-91)

K75RT (1990-91)

If you are in doubt whether or not this is the right triple tree clamp for your bike, please contact us.

Speedometer not included
