BMW Triple Tree Clamp | Motogadget Motoscope Mini | Twin-Shock 36mm Forks

BMW Triple Tree Clamp with integrated Motogadget speedo and hidden fork mounting mechanism. Fits BMW Twin-Shock Airhead models with 36mm forks.

It replaces the BMW OEM factory mounted 4mm steel top yoke, The BMW Triple Tree Clamp by rebelmoto stiffens the front end of your Airhead and makes it more rigid. This results in an overall better ride, especially at highway speeds.

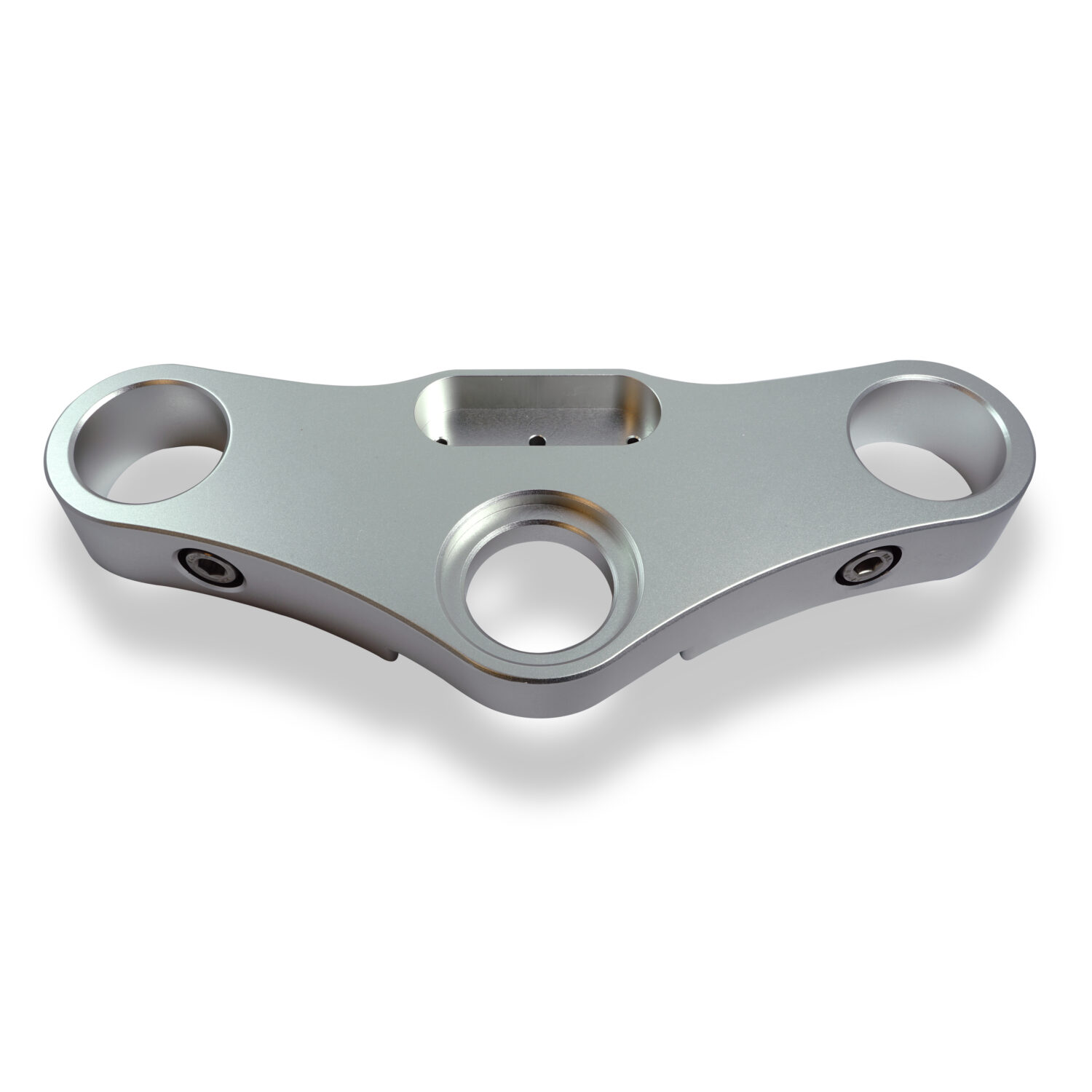

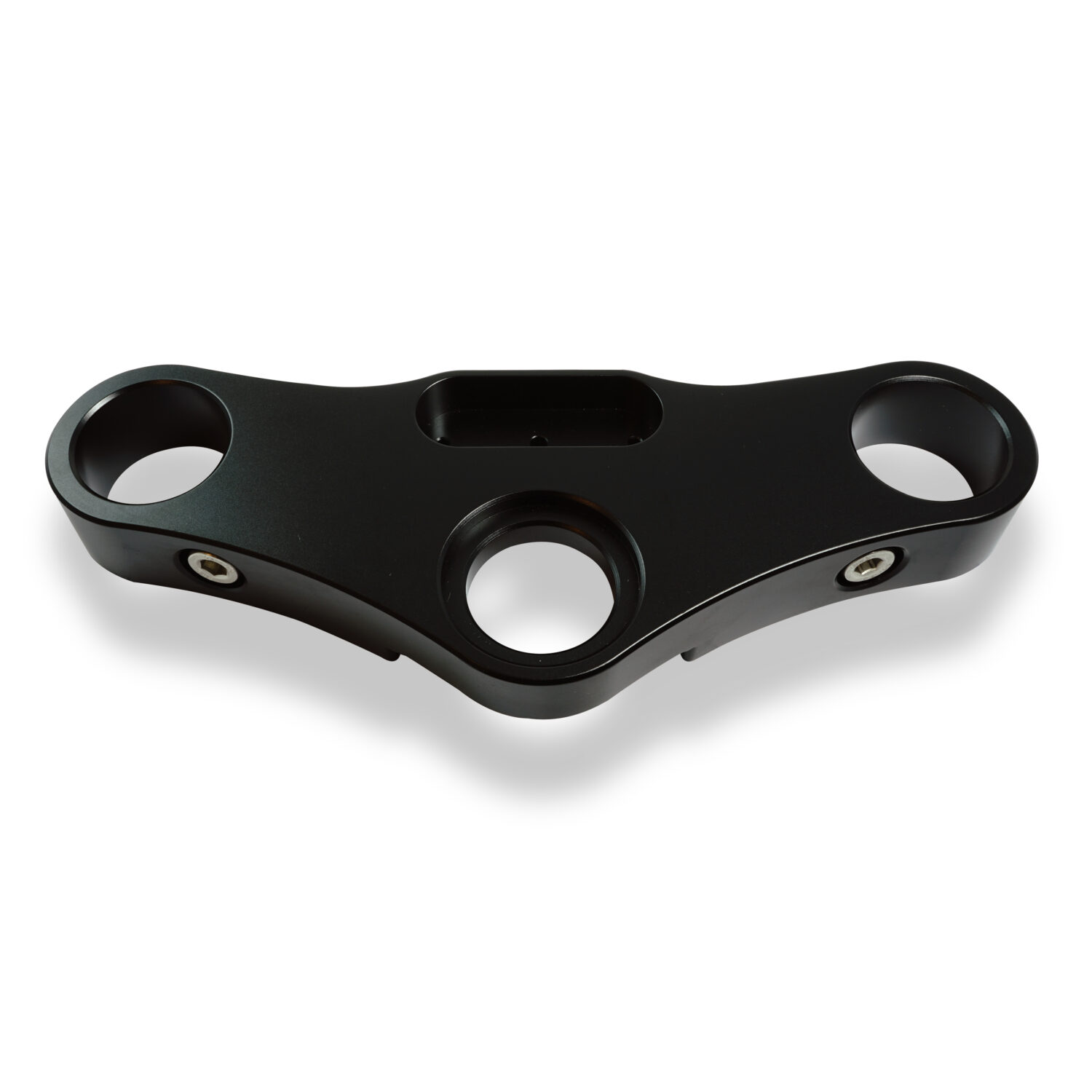

This high quality triple tree clamp is CNC machined out of a single piece of aircraft grade aluminium. After machining the triple tree clamp undergoes a series of surface treatment steps including anodizing. The result is a smooth satin finish that is both scratch and weather resistant. Perfect for a café racer motorcycle build or any other custom build, where you wish to use clip-ons.

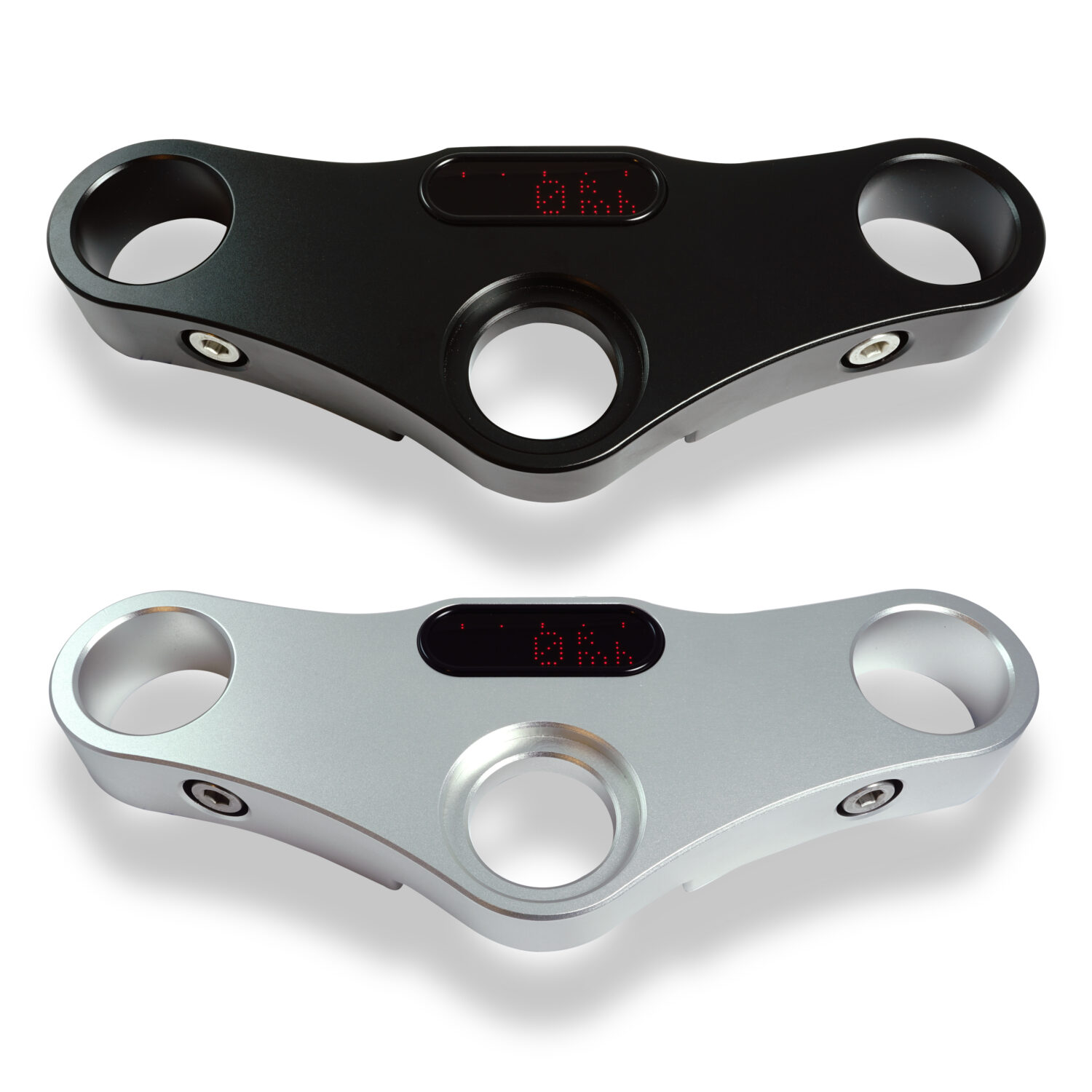

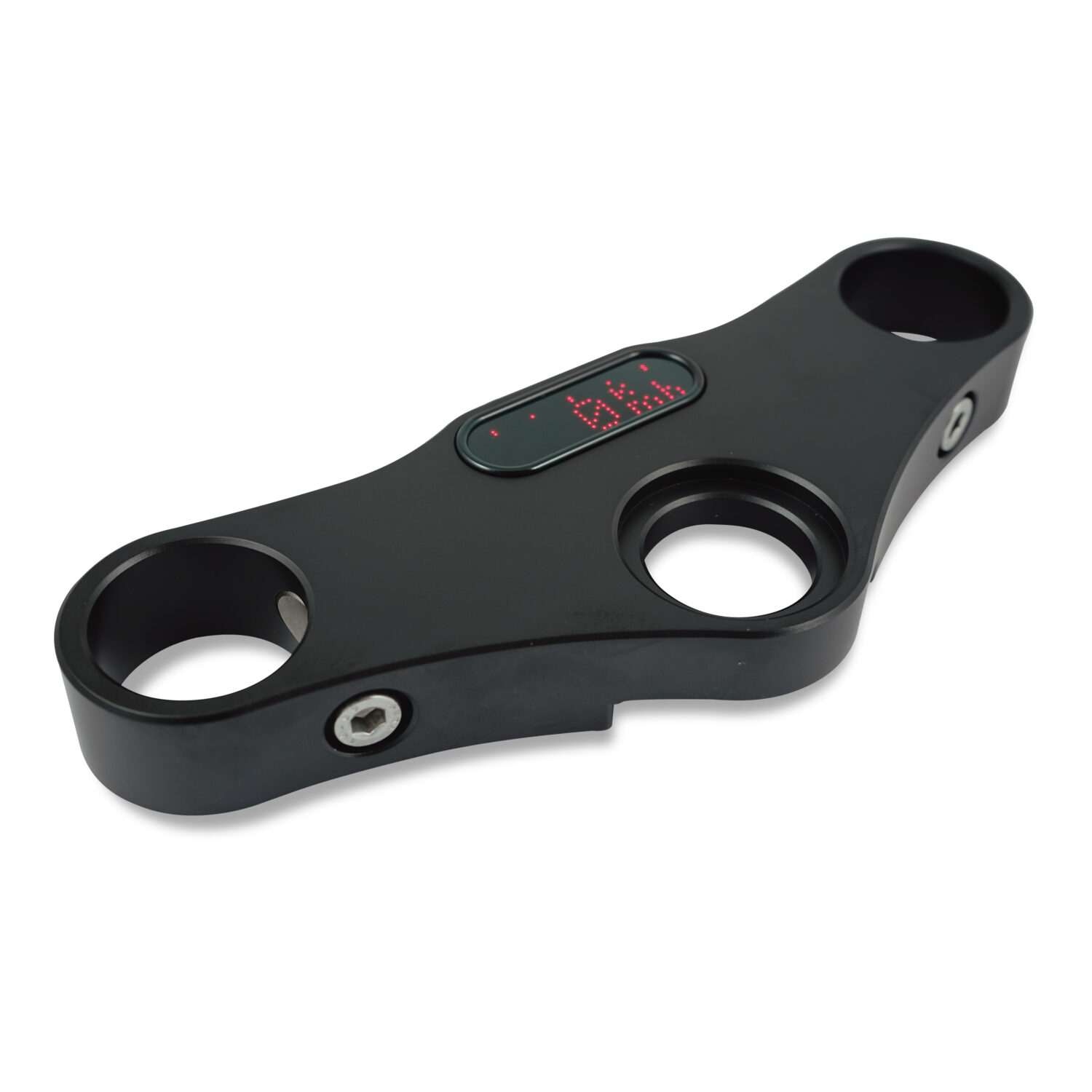

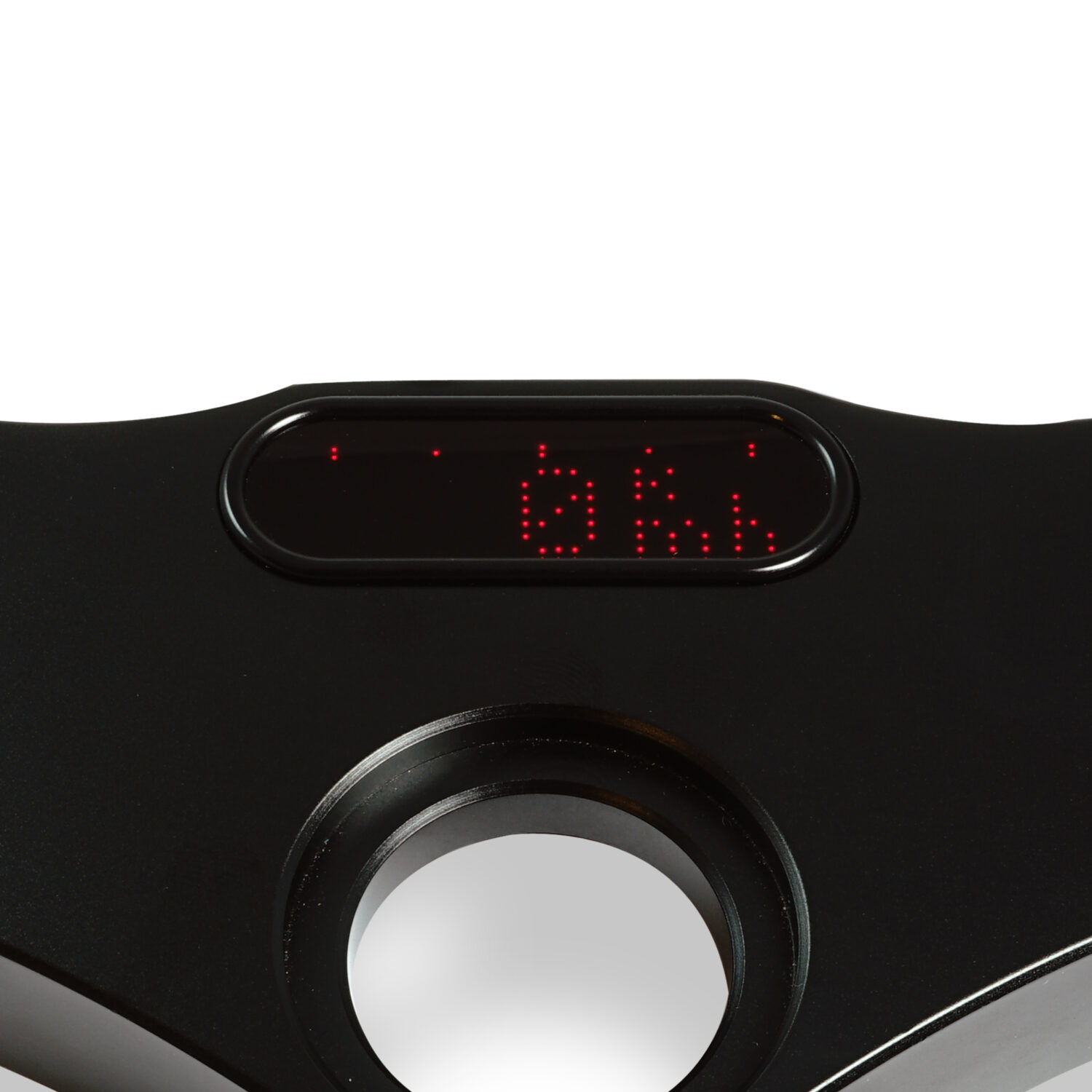

The triple tree clamp has been designed to be used together with the Motogadget “Motoscope Mini” digital speedometer.

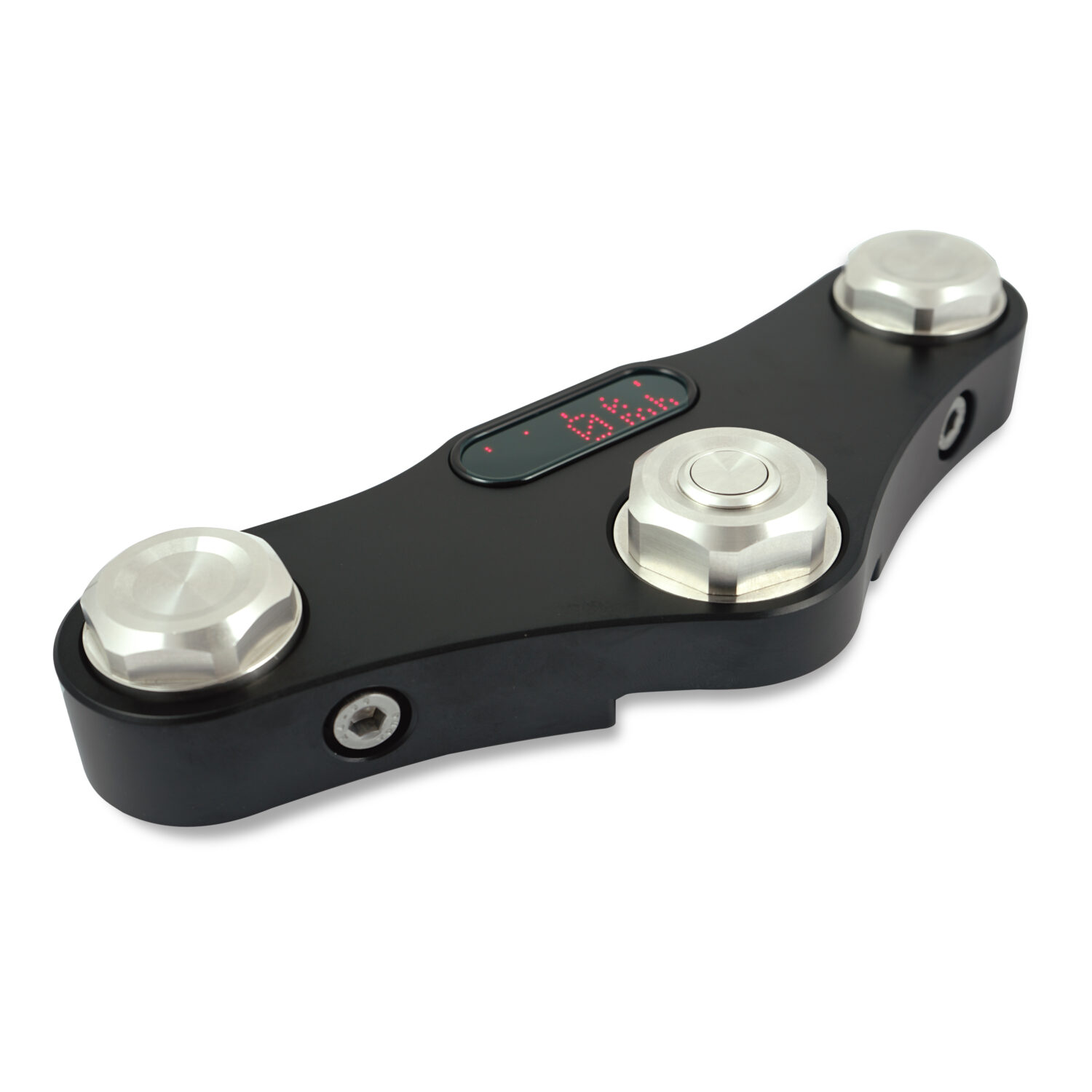

The hidden fork locking mechanism that secures the triple tree clamp to the front forks are CNC machined out of stainless steel and are of course included together with two M8 stainless steel bolts.

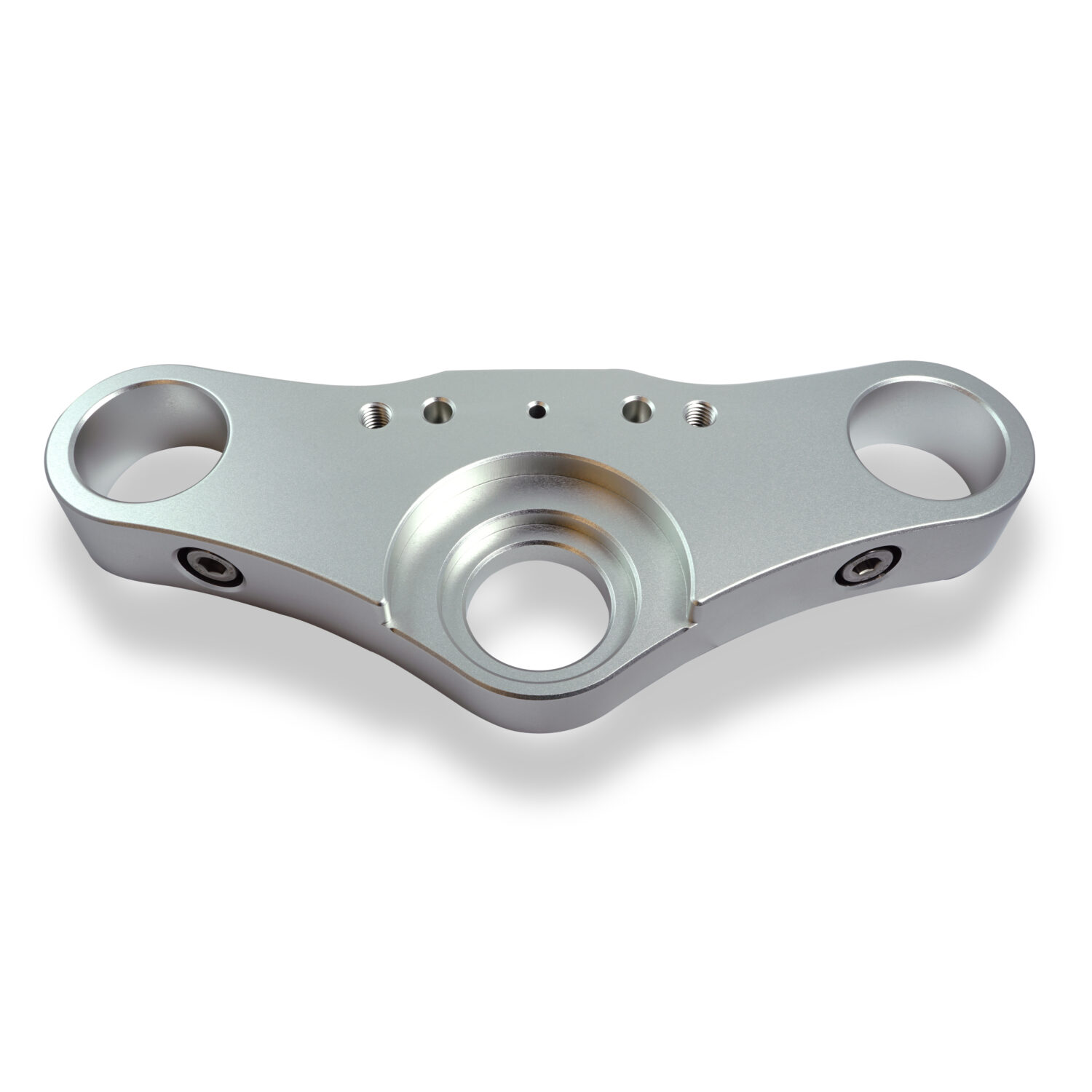

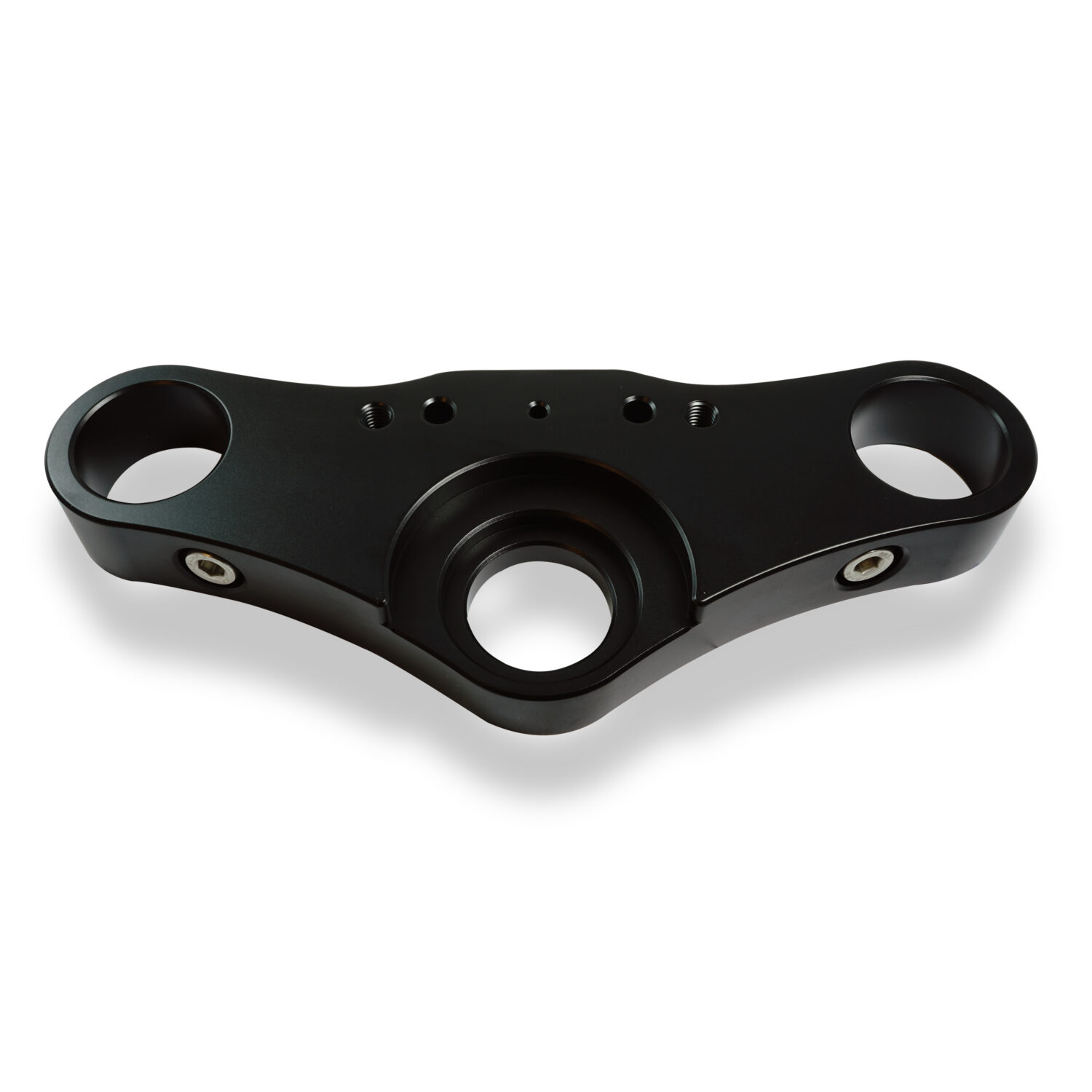

At the bottom of the triple tree clamp there are two M8 holes, which can be used to mount any other parts you wish to have installed. Ignition lock or a bracket for the choke, for example.

Fits the following BMW twin-shock R models with 36mm forks:

R50/5 – R60/5 – R75/5 – R60/6 – R60/7 – R75/6 – R75/7 – R80/7 – R80RT – R80 – R90/6 – R90S – R100/7 – R100S – R100RS – R100RT – R100CS

If you are in doubt whether or not this is the right triple tree clamp for your bike, please contact us.

Speedometer not included
