BMW Triple Tree Clamp | “Scram” | Monolever 38,5mm Forks

BMW Triple Tree Clamp with hidden fork mounting mechanism and holes to mount risers for bars. Fits BMW Monolever Airhead models with 38,5mm forks.

It replaces the BMW OEM factory mounted 4mm steel top yoke, The BMW Triple Tree Clamp by rebelmoto stiffens the front end of your Airhead and makes it more rigid. This results in an overall better ride, especially at highway speeds.

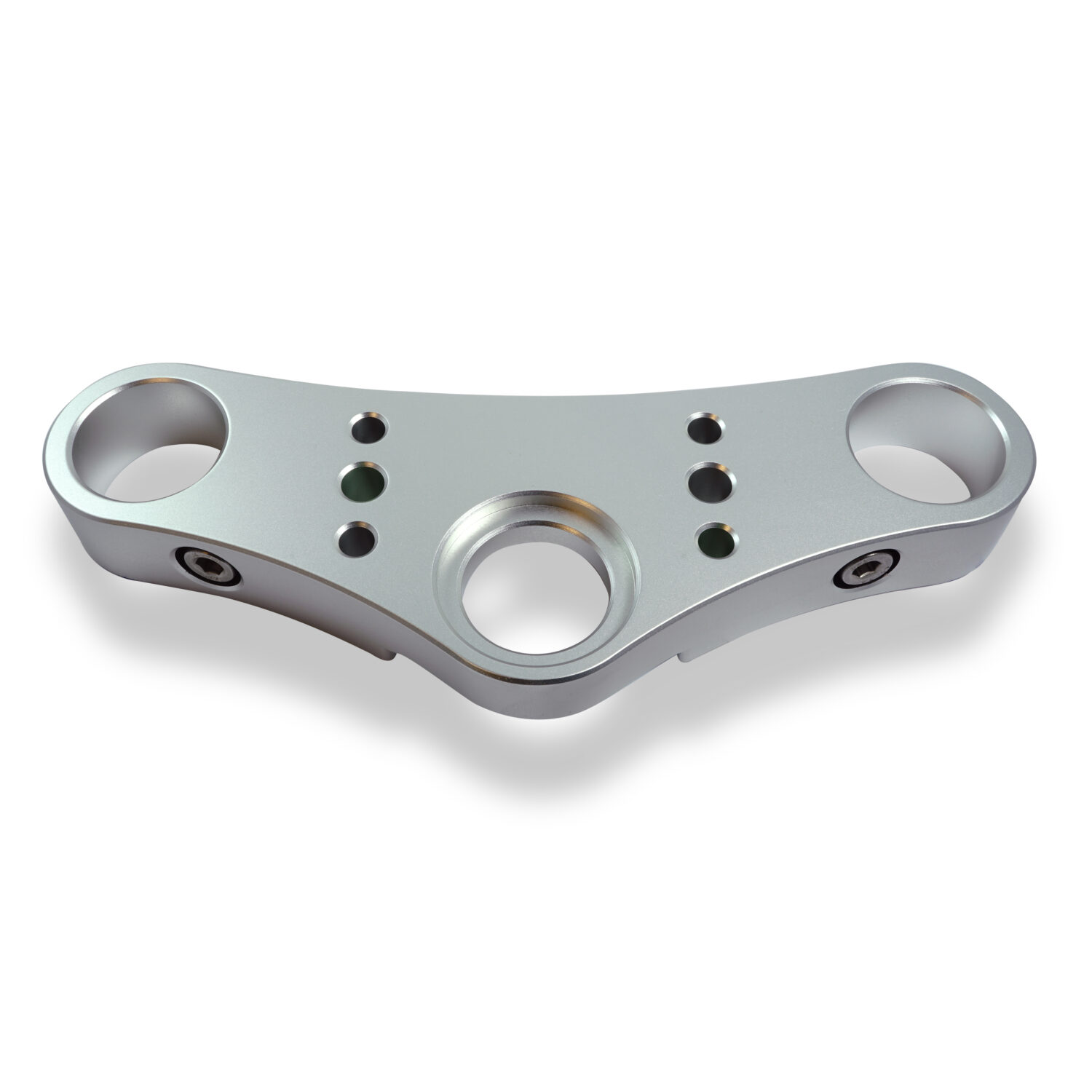

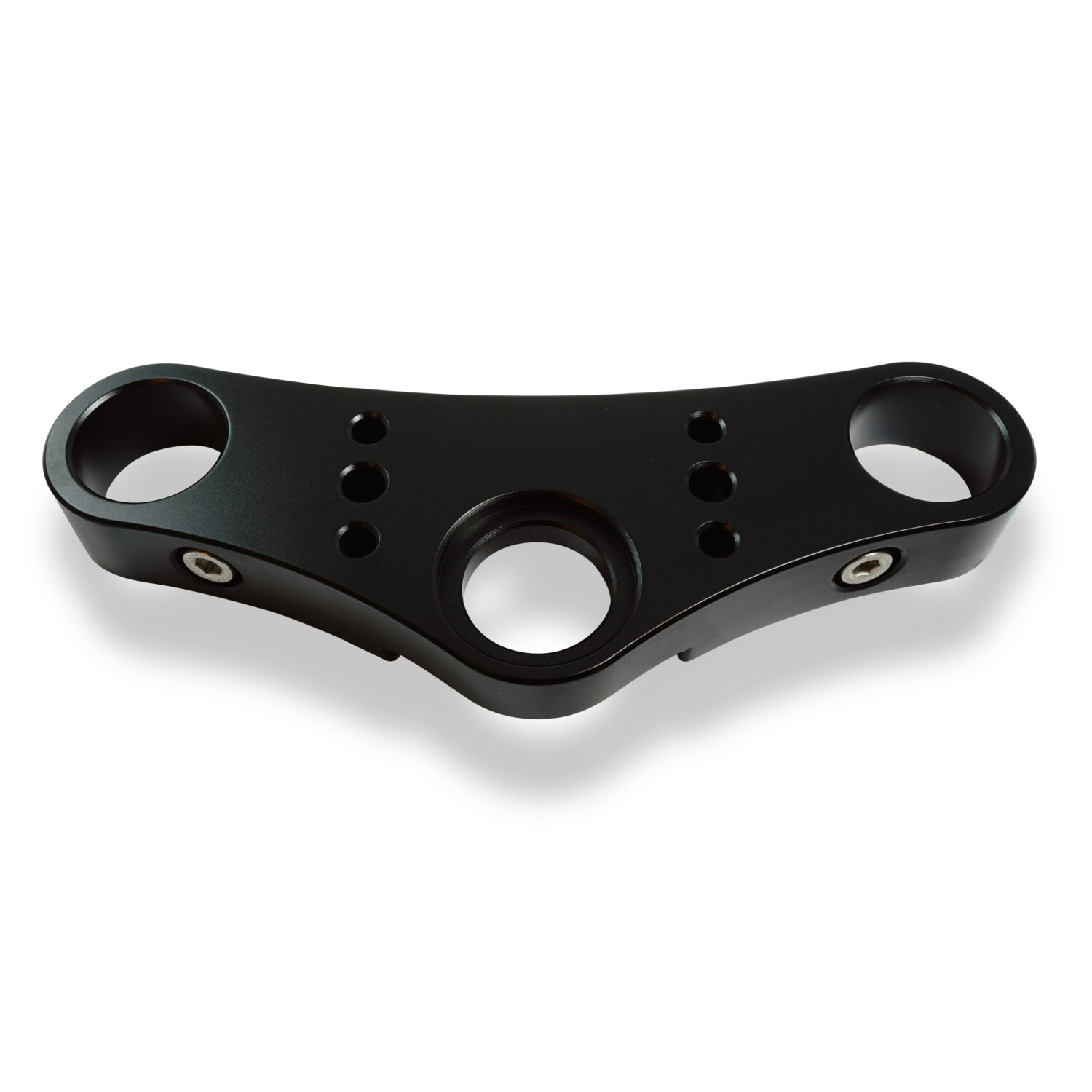

This high quality triple tree clamp is CNC machined out of a single piece of aircraft grade aluminium. After machining the triple tree clamp undergoes a series of surface treatment steps including anodizing. The result is a smooth satin finish that is both scratch and weather resistant. Perfect for a scrambler motorcycle build or any other custom build, where you wish to use bars.

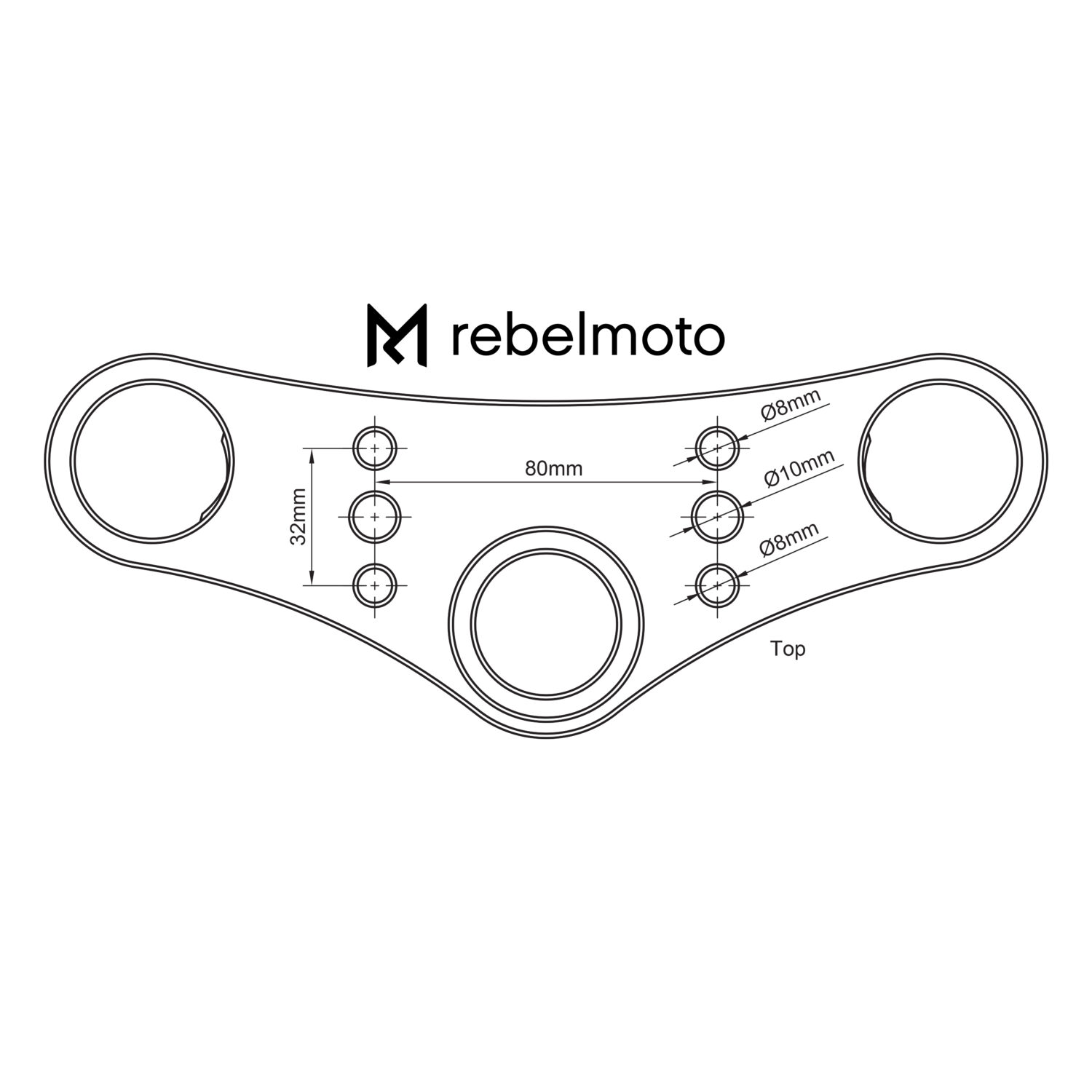

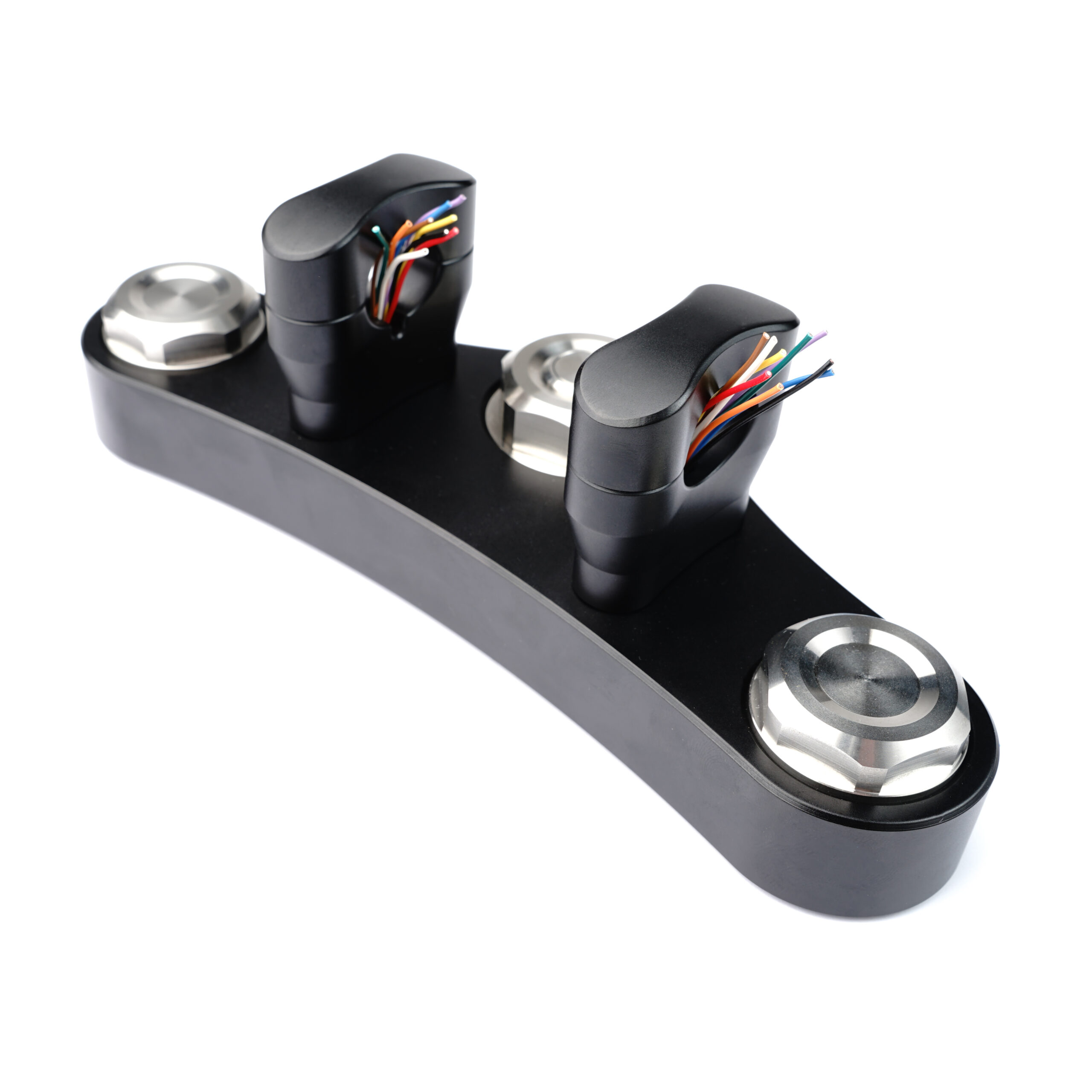

The “Scram” Triple Tree Clamp can be used with the OEM BMW risers that come on your bike. These OEM risers each have two M8 bolts fitted to them. Since the “Scram” Triple Tree Clamp is thicker than the original 4mm steel top yoke, new longer bolts need to be used. These bolts are not included. The “Scram” Triple Tree Clamp also has two Ø10mm holes to be used with most aftermarket risers, including our own rebelmoto risers, which of course are specially designed for our triple trees. These risers are mounted by a single M10 bolt.

The hidden fork locking mechanism that secures the triple tree clamp to the front forks are CNC machined out of stainless steel and are of course included together with two M8 stainless steel bolts.

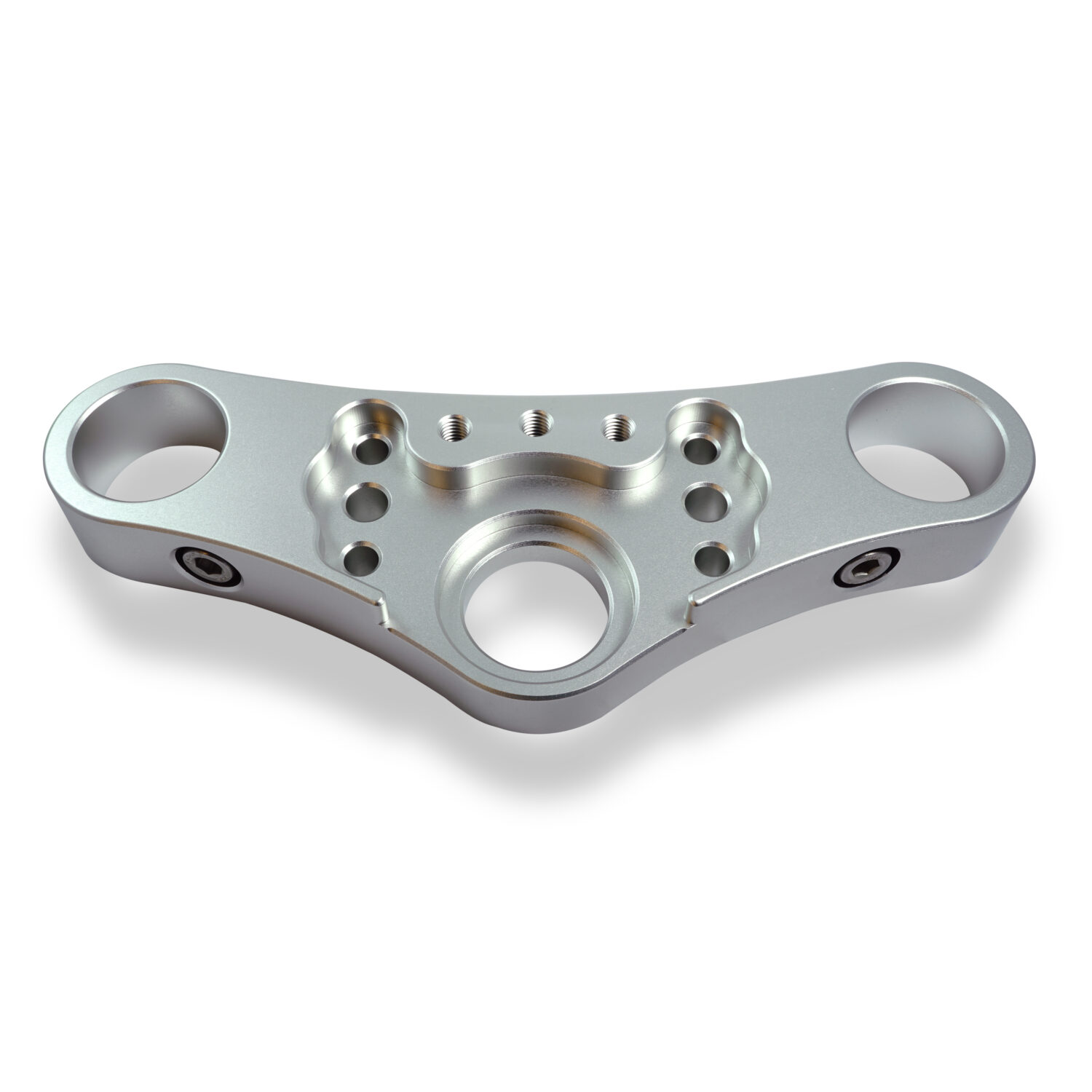

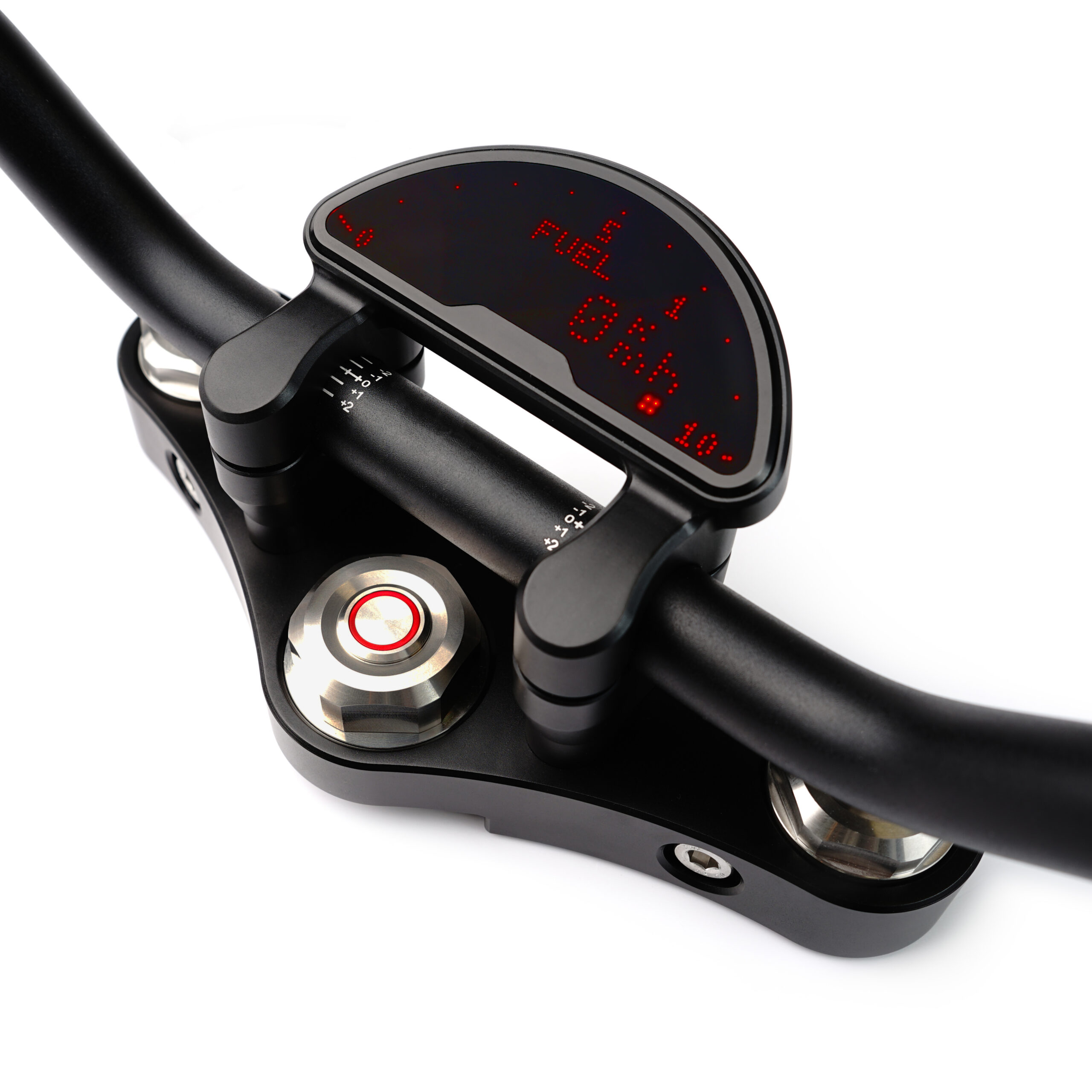

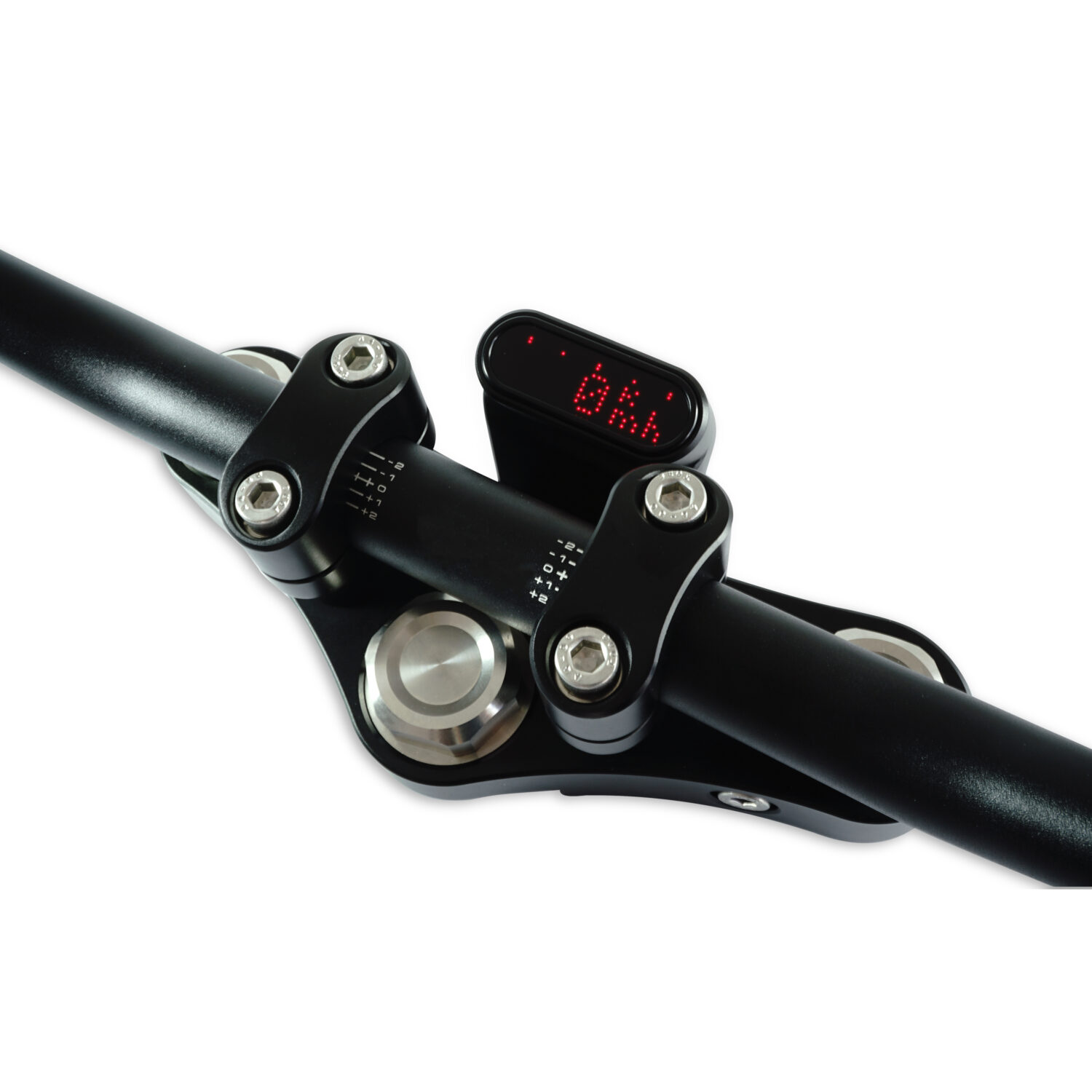

At the bottom of the triple tree clamp there are three M8 holes, which can be used to mount a speedometer or any other parts you wish to have installed. Ignition lock or a bracket for the choke, for example.

Fits the following BMW Monolever R models with 38,5mm forks:

R65 – R80 – R80ST – R80GS – R80RT – R100RT – R100RS

If you are in doubt whether or not this is the right triple tree clamp for your bike, please contact us.
